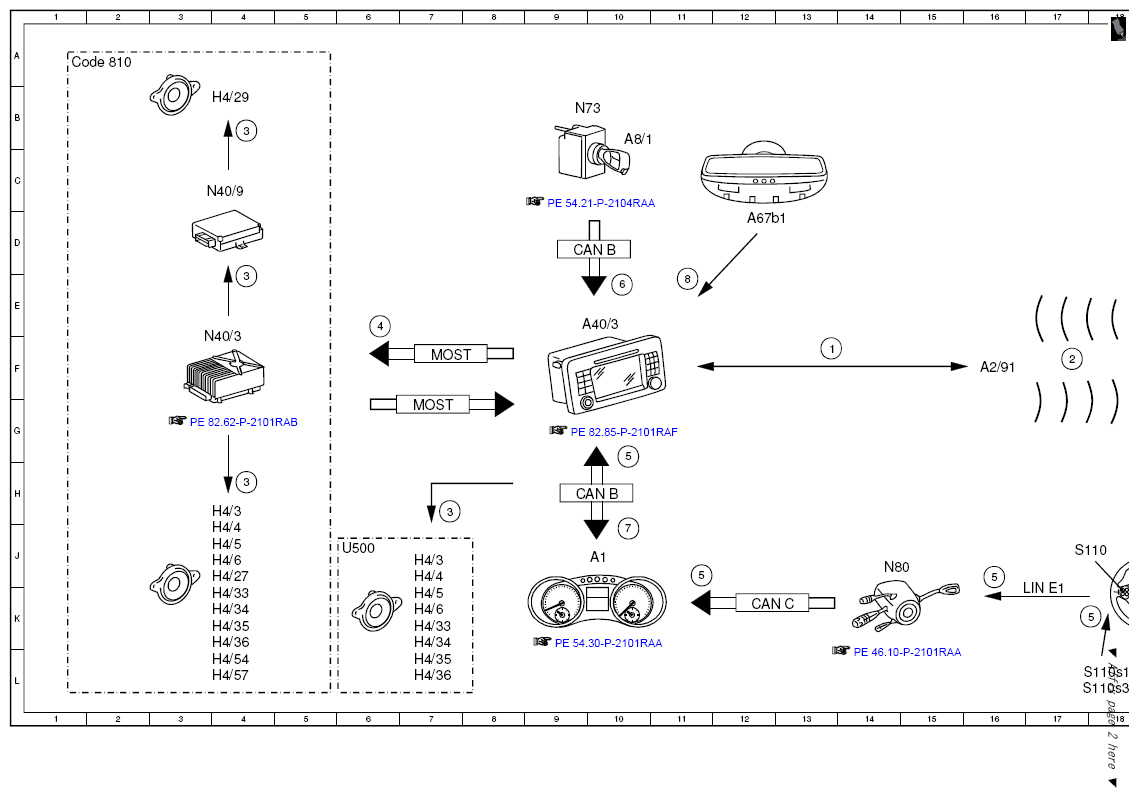

| 1 |
Telephone, signal |
13F |
| 2 |
Bluetooth, signal |
17F |
| 3 |
Voice output, signal |
4H |
| 3 |
Voice output, signal |
7H |
| 3 |
Voice output, signal |
4E |
| 3 |
Voice output, signal |
4B |
| 4 |
Sound system amplifier, actuation |
6E |
| 5 |
Multifunction steering wheel button group, signal |
18K |
| 5 |
Multifunction steering wheel button group, signal |
19K |
| 5 |
Multifunction steering wheel button group, signal |
16J |
| 5 |
Multifunction steering wheel button group, signal |
10G |
| 5 |
Multifunction steering wheel button group, signal |
11J |
| 6 |
Circuit 15R, status |
10E |
| 7 |
Instrument cluster, message |
10H |
| 8 |
Voice input, signal |
11E |
| A1 |
Instrument cluster |
10J |
| A2/91 |
Bluetooth antenna |
16F |
| A40/3 |
COMAND operating, display and control unit |
10E |
| A67b1 |
Hands-free system microphone group |
12D |
| A8/1 |
Transmitter key |
10B |
| CAN B |
Interior CAN |
10H |
| CAN B |
Interior CAN |
9D |
| CAN C |
Engine compartment CAN |
12K |
| Code 810 |
Sound system |
1A |
| H4/27 |
Center cockpit speaker (centerfill) |
4J |
| H4/29 |
Subwoofer |
4B |
| H4/3 |
Left rear door speaker |
4H |
| H4/3 |
Left rear door speaker |
7J |
| H4/33 |
Left front door tweeter |
4K |
| H4/33 |
Left front door tweeter |
7K |
| H4/34 |
Right front door tweeter |
4K |
| H4/34 |
Right front door tweeter |
7K |
| H4/35 |
Left rear door tweeter |
4K |
| H4/35 |
Left rear door tweeter |
7L |
| H4/36 |
Right rear door tweeter |
4K |
| H4/36 |
Right rear door tweeter |
7L |
| H4/4 |
Right rear door speaker |
4J |
| H4/4 |
Right rear door speaker |
7J |
| H4/5 |
Left front door speaker |
4J |
| H4/5 |
Left front door speaker |
7K |
| H4/54 |
Left rear surround speaker |
4L |
| H4/57 |
Right rear surround speaker |
4L |
| H4/6 |
Right front door speaker |
4J |
| H4/6 |
Right front door speaker |
7K |
| LIN E1 |
Steering LIN |
17K |
| MOST |
Media Oriented System Transport |
7G |
| MOST |
Media Oriented System Transport |
7F |
| N40/3 |
Amplifier for sound system |
4F |
| N40/9 |
Subwoofer amplifier |
4C |
| N73 |
EIS [EZS] control unit |
9B |
| N80 |
Steering column module |
14J |
| S110 |
Left multifunction steering wheel button group |
17J |
| S110s1 |
Scroll forward/back button |
18L |
| S110s3 |
System selection button |
18L |
| S111 |
Right multifunction steering wheel button group |
19J |
| S111s3 |
Accept/terminate phone call button |
19L |
| S111s4 |
VCS [SBS] on button |
19L |
| U500 |
Not valid for Sound System |
6J |
