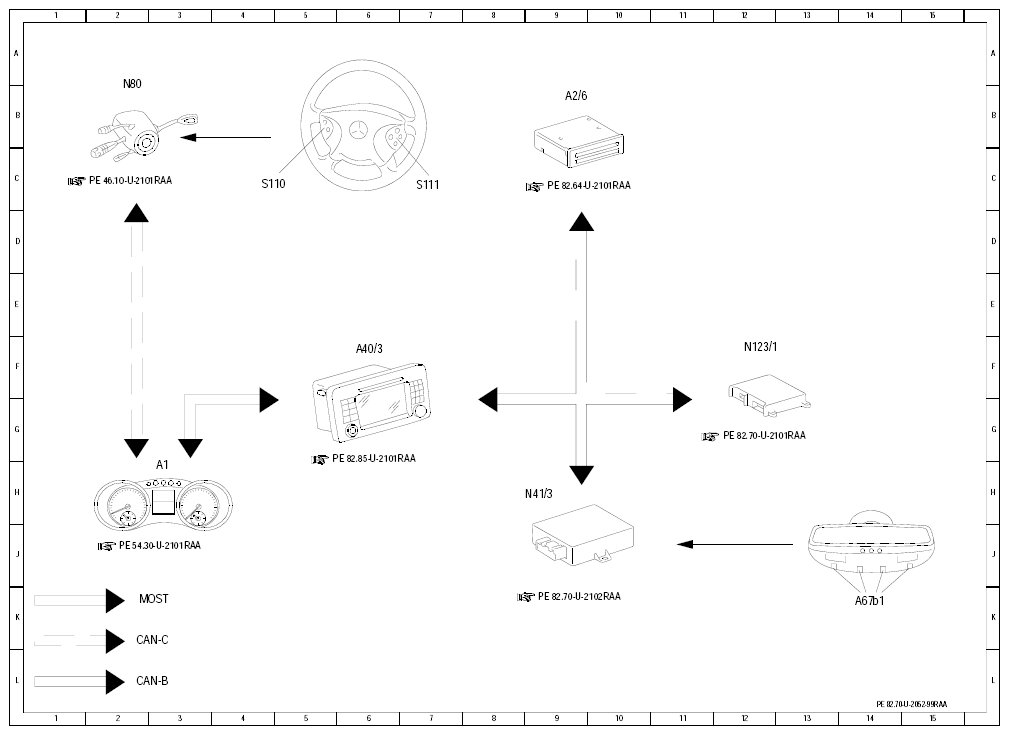

Electrical function diagram for voice control system (VCS [SBS]) - PE82.70-U-2052-99RAA
| Code | Designation | Position |
|---|---|---|
| A1 | Instrument cluster | 3 H |
| A2/6 | CD changer | 9 B |
| A40/3 | COMAND operating, display and control unit | 6 F |
| A67b1 | Hands-free system microphone group | 14 K |
| MOST | Media Oriented System Transport | 2 K |
| N123/1 | Universal Portable CTEL Interface (UPCI [UHI]) control unit | 12 F |
| N41/3 | Voice control system (VCS [SBS]) control unit | 8 H |
| N80 | Steering column module | 2 B |
| S110 | Left multifunction steering wheel button group | 4 C |
| S111 | Right multifunction steering wheel button group | 7 C |
