| 1 |
Telephone, signal |
40J |
| 1 |
Telephone, signal |
36J |
| 1 |
Telephone, signal |
42H |
| 1 |
Telephone, signal |
36D |
| 1 |
Telephone, signal |
40C |
| 1 |
Telephone, signal |
42B |
| 1 |
Telephone, signal |
28D |
| 1 |
Telephone, signal |
28J |
| 2 |
Bluetooth, signal |
31D |
| 2 |
Bluetooth, signal |
31J |
| 3 |
Voice output, signal |
4H |
| 3 |
Voice output, signal |
8H |
| 3 |
Voice output, signal |
4D |
| 3 |
Voice output, signal |
4B |
| 4 |
Sound system amplifier, actuation |
6E |
| 5 |
Multifunction steering wheel button group, signal |
26G |
| 5 |
Multifunction steering wheel button group, signal |
23H |
| 5 |
Multifunction steering wheel button group, signal |
25G |
| 5 |
Multifunction steering wheel button group, signal |
13H |
| 5 |
Multifunction steering wheel button group, signal |
18H |
| 6 |
Circuit 15R, status |
34K |
| 7 |
Instrument cluster, message |
15H |
| 8 |
Voice input, signal |
13C |
| A1 |
Instrument cluster |
16H |
| A2 |
Radio |
10C |
| A2/53 |
Telephone/portable CTEL/STH radio remote control antenna splitter |
42J |
| A2/53 |
Telephone/portable CTEL/STH radio remote control antenna splitter |
42D |
| A2/56 |
Radio and navigation unit |
10F |
| A2/91 |
Bluetooth antenna |
30D |
| A2/91 |
Bluetooth antenna |
30K |
| A2/93a3 |
Telephone antenna |
42G |
| A2/93a3 |
Telephone antenna |
42B |

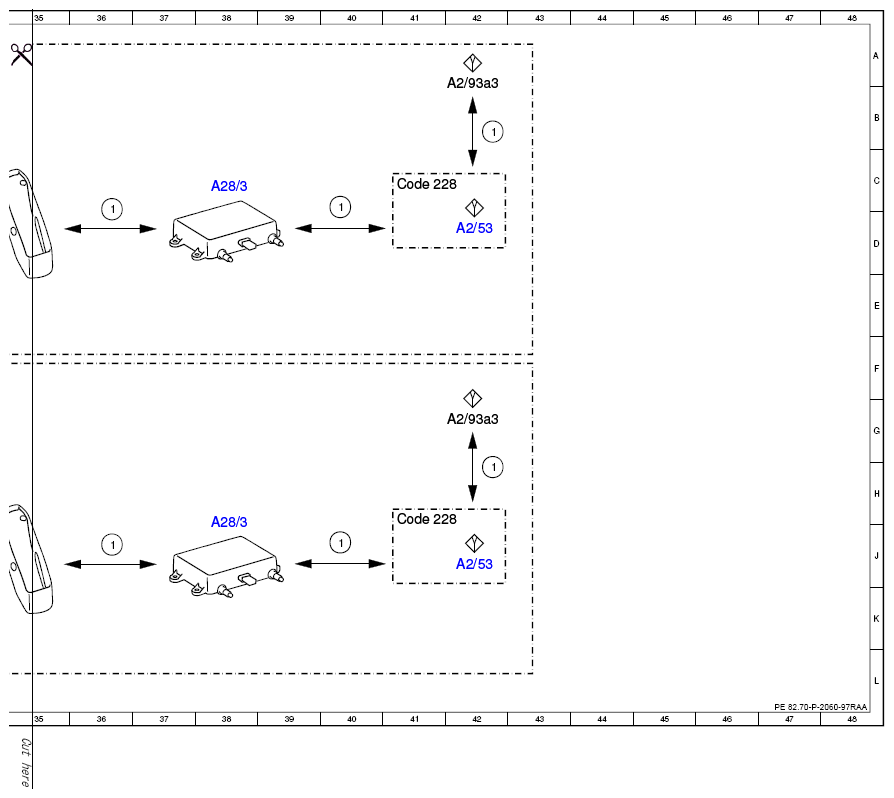

| A28/3 |
E-net compensator |
38J |
| A28/3 |
E-net compensator |
38C |
| A34/15 |
UHI portable CTEL holder (Universal Handy Interface) |
34J |
| A34/15 |
UHI portable CTEL holder (Universal Handy Interface) |
34D |
| A34/7 |
Bluetooth module |
34E |
| A40/3 |
COMAND operating, display and control unit |
11J |
| A40/3 |
COMAND operating, display and control unit |
11J |
| A67b1 |
Hands-free system microphone group |
15B |
| A8/1 |
Transmitter key |
16F |
| CAN B |
Interior CAN |
14H |
| CAN B |
Interior CAN |
14F |
| CAN C |
Engine compartment CAN |
19H |
| Code 228 |
Stationary heater |
41H |
| Code 228 |
Stationary heater |
41C |
| Code 386 |
Mobile phone preinstallation with universal interface |
33F |
| Code 386 |
Mobile phone preinstallation with universal interface |
33A |
| Code 510 |
Audio 20 with CD changer |
9C |
| Code 511 |
Audio 50 APS incl. DVD changer |
25H |
| Code 511 |
Audio 50 APS incl. DVD changer |
9F |
| Code 512 |
COMAND APS with DVD changer |
25H |
| Code 512 |
COMAND APS with DVD changer |
9H |
| Code 523 |
Audio 20 radio |
9C |
| Code 525 |
Audio 50 APS radio (CD) |
9F |
| Code 527 |
COMAND APS (with navigation) |
25J |
| Code 527 |
COMAND APS (with navigation) |
9J |
| Code 528 |
HIGH Class USA |
9J |

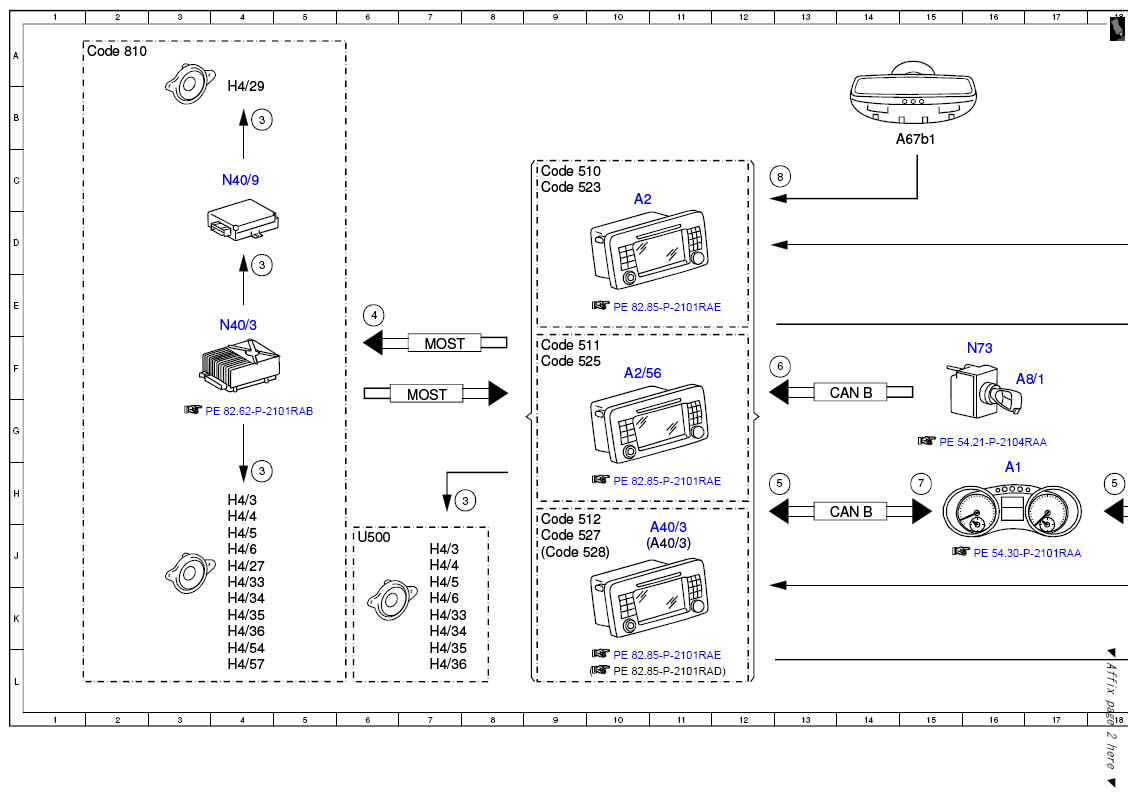

| Code 810 |
Sound system |
2A |
| H4/27 |
Center cockpit speaker (centerfill) |
4J |
| H4/29 |
Subwoofer |
4B |
| H4/3 |
Left rear door speaker |
4H |
| H4/3 |
Left rear door speaker |
7J |
| H4/33 |
Left front door tweeter |
4J |
| H4/33 |
Left front door tweeter |
7K |
| H4/34 |
Right front door tweeter |
4K |
| H4/34 |
Right front door tweeter |
7K |
| H4/35 |
Left rear door tweeter |
4K |
| H4/35 |
Left rear door tweeter |
7L |
| H4/36 |
Right rear door tweeter |
4K |
| H4/36 |
Right rear door tweeter |
7L |
| H4/4 |
Right rear door speaker |
4H |
| H4/4 |
Right rear door speaker |
7J |
| H4/5 |
Left front door speaker |
4J |
| H4/5 |
Left front door speaker |
7J |
| H4/54 |
Left rear surround speaker |
4L |
| H4/57 |
Right rear surround speaker |
4L |
| H4/6 |
Right front door speaker |
4J |
| H4/6 |
Right front door speaker |
7K |
| LIN E1 |
Steering LIN |
23H |
| MOST |
Media Oriented System Transport |
7F |
| MOST |
Media Oriented System Transport |
7F |
| N40/3 |
Amplifier for sound system |
4E |
| N40/9 |
Subwoofer amplifier |
4C |
| N73 |
EIS [EZS] control unit |
16F |
| N80 |
Steering column module |
21H |

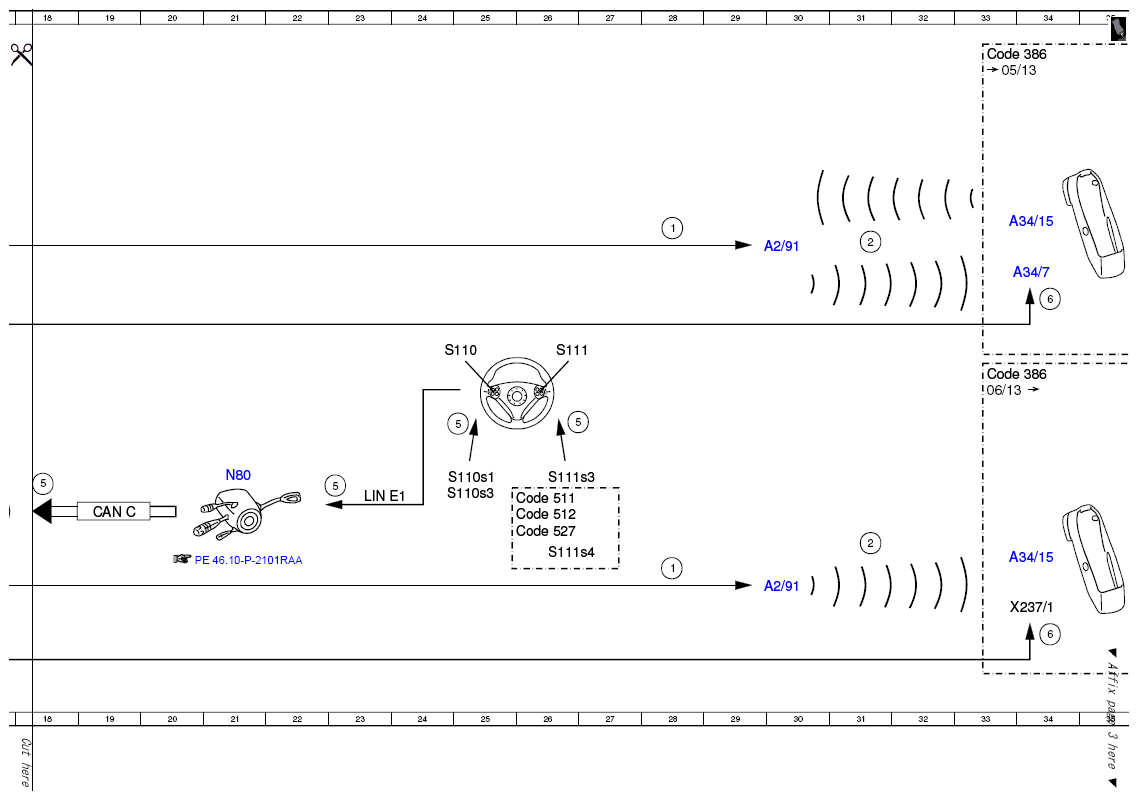

| S110 |
Left multifunction steering wheel button group |
25F |
| S110s1 |
Scroll forward/back button |
25H |
| S110s3 |
System selection button |
25H |
| S111 |
Right multifunction steering wheel button group |
26F |
| S111s3 |
Accept/terminate phone call button |
26H |
| S111s4 |
VCS [SBS] on button |
26J |
| U500 |
Not valid for Sound System |
6J |
| X237/1 |
Mobile phone contact plate |
34K |
