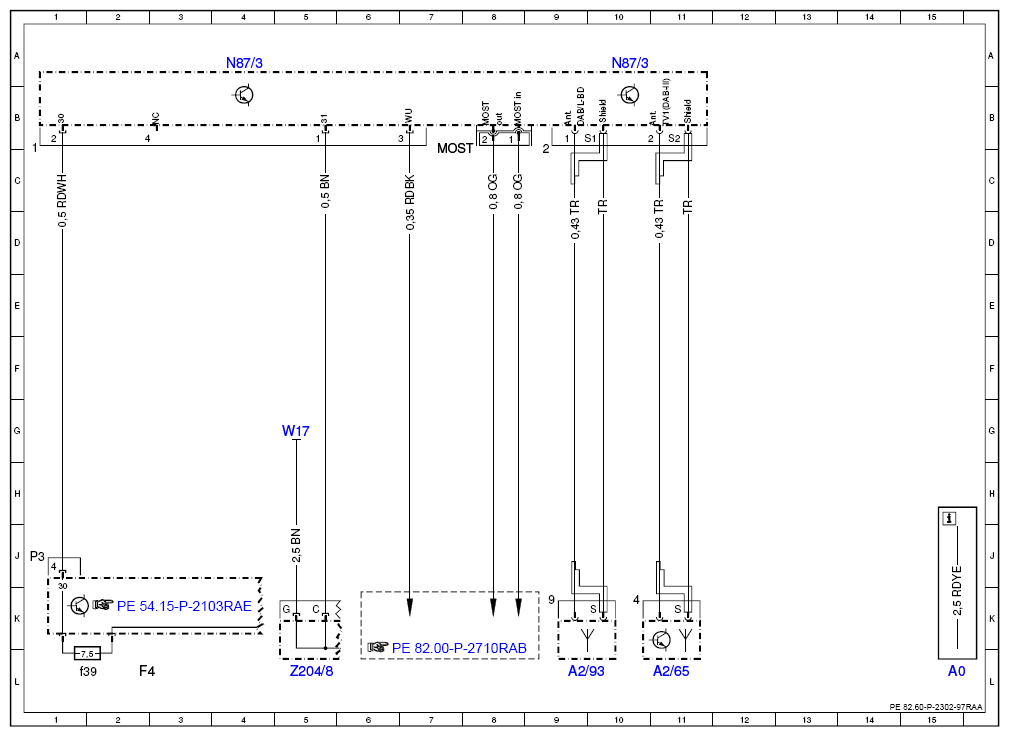

Wiring diagram for Digital Audio Broadcasting control unit system (DAB) - PE82.60-P-2302-97RAA
| Code | Designation | Position |
|---|---|---|
| A0 | Color code key | 15L |
| A2/65 | Right antenna amplifier module | 11L |
| A2/93 | Roof antenna module | 9L |
| F4 | Load compartment fuse and relay box | 2L |
| F4f39 | Fuse 39 | 1L |
| MOST | Media Oriented System Transport | 7C |
| N87/3 | Digital Audio Broadcasting control unit | 4A |
| N87/3 | Digital Audio Broadcasting control unit | 10A |
| W17 | Ground (right rear seat) | 5G |
| Z204/8 | Circuit 31 left rear seat voltage distributor connector (2) | 5L |
