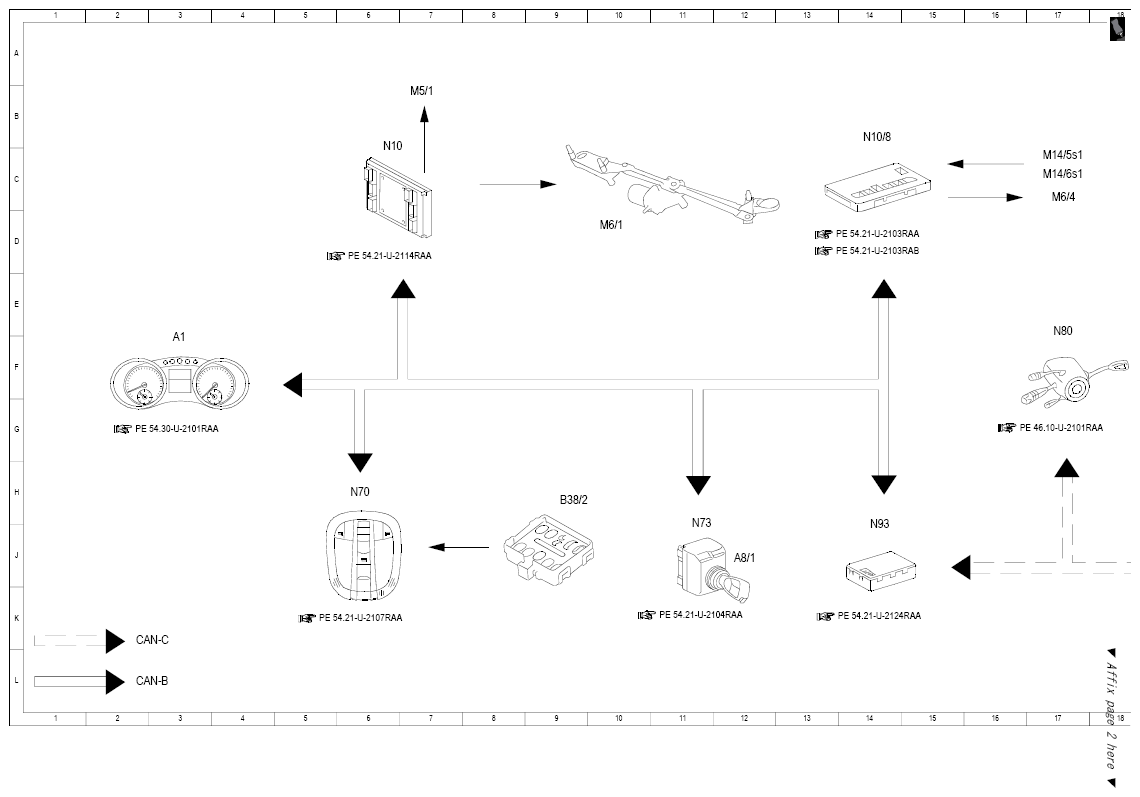

| A1 |
Instrument cluster |
3 F |
| A8/1 |
Transmitter key |
12 J |
| A80 |
Intelligent servo module for DIRECT SELECT |
20 J |
| B38/2 |
Rain/light sensor |
9 H |
| M14/5s1 |
Right front door rotary tumbler microswitch |
17 C |
| M14/6s1 |
Left front door rotary tumbler microswitch |
17 C |
| M5/1 |
Windshield washer fluid pump |
7 B |
| M6/1 |
Wiper motor |
10 D |
| M6/4 |
Tailgate wiper motor |
17 C |
| N10 |
Front SAM control unit |
6 C |
| N10/8 |
Rear SAM control unit |
14 C |
| N70 |
Overhead control panel control unit |
6 H |
| N73 |
EIS [EZS] control unit |
11 J |
| N80 |
Steering column module |
17 F |
| N93 |
Central gateway control unit |
14 J |
| S4 |
Combination switch |
21 F |
