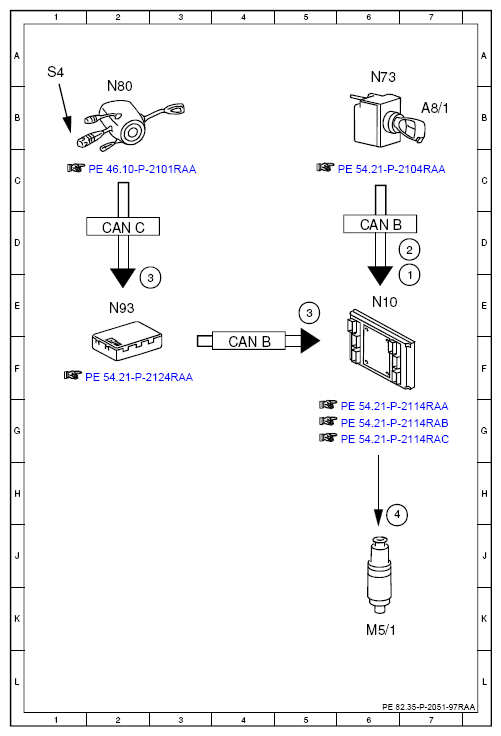

Electrical function schematic for windshield washer - PE82.35-P-2051-97RAA
| Code | Designation | Position |
|---|---|---|
| 1 | Circuit 15, status | 7E |
| 2 | Circuit 50, status | 7D |
| 3 | Combination switch, status | 2E |
| 3 | Combination switch, status | 5E |
| 4 | Window washer fluid pump, actuation | 7H |
| A8/1 | Transmitter key | 7B |
| CAN B | Interior CAN | 4F |
| CAN B | Interior CAN | 6D |
| CAN C | Engine compartment CAN | 2D |
| M5/1 | Windshield washer fluid pump | 6K |
| N10 | Front SAM control unit | 6E |
| N73 | EIS [EZS] control unit | 6A |
| N80 | Steering column module | 2B |
| N93 | Central gateway control unit | 2E |
| S4 | Combination switch | 1A |
