| 1 |
Headlamp switch-off delay, request |
11 E |
| 10 |
Ambient lamp, request |
5 H |
| 10 |
Ambient lamp, request |
11 H |
| 11 |
Ambient lamp, actuation |
3 J |
| 11 |
Ambient lamp, actuation |
9 J |
| 2 |
Rain/light sensor, status |
14 C |
| 2 |
Rain/light sensor, status |
18 B |
| 3 |
Rotary light switch, status |
4 B |
| 3 |
Rotary light switch, status |
11 D |
| 4 |
Circuit 15, status |
13 C |
| 5 |
Standing and parking lights, request |
17 D |
| 6 |
Standing and parking lights, actuation |
14 J |
| 6 |
Standing and parking lights, actuation |
19 J |
| 6 |
Standing and parking lights, actuation |
22 E |
| 6 |
Standing and parking lights, actuation |
25 G |
| 6 |
Standing and parking lights, actuation |
27 E |
| 7 |
Front fog lamp, actuation |
14 K |
| 7 |
Front fog lamp, actuation |
19 K |
| 8 |
Side-marker lamp, actuation |
14 K |
| 8 |
Side-marker lamp, actuation |
19 K |
| 9 |
Central locking (CL[ZV]), status |
13 C |

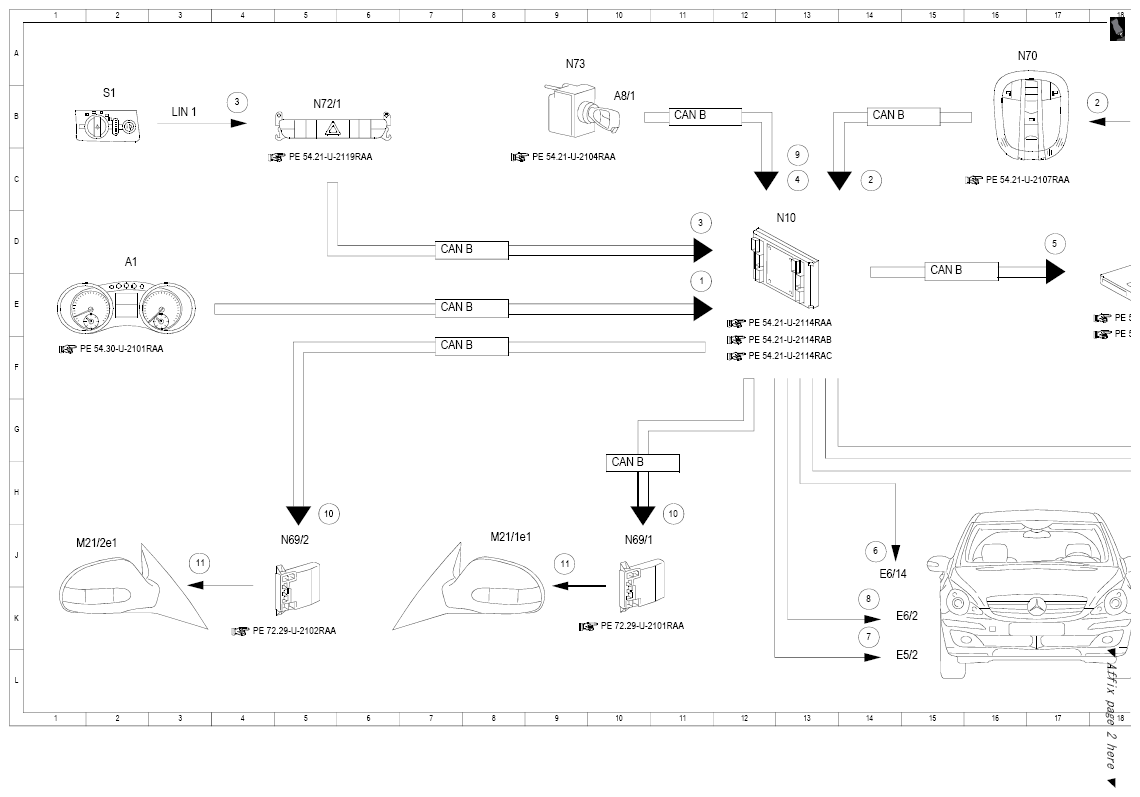

| A1 |
Instrument cluster |
2 D |
| A8/1 |
Transmitter key |
10 B |
| B38/2 |
Rain/light sensor |
19 A |
| CAN B |
Interior CAN |
7 F |
| CAN B |
Interior CAN |
7 E |
| CAN B |
Interior CAN |
7 D |
| CAN B |
Interior CAN |
10 H |
| CAN B |
Interior CAN |
11 B |
| CAN B |
Interior CAN |
14 B |
| CAN B |
Interior CAN |
15 E |

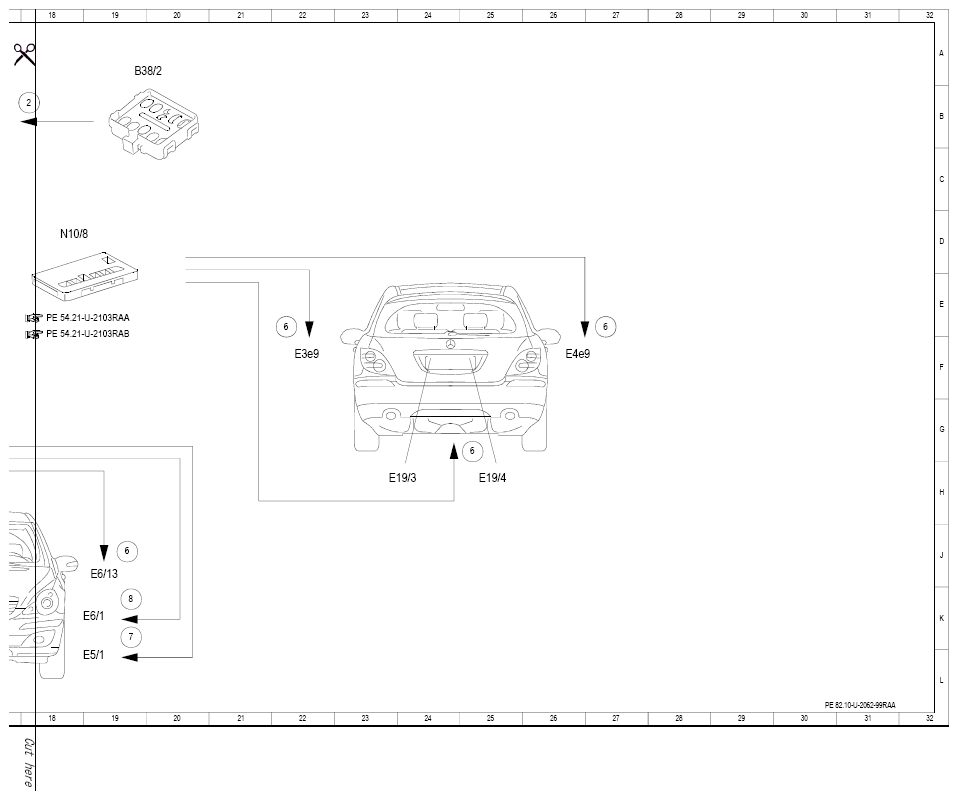

| E19/3 |
Left rear-end door license plate lamp |
23 H |
| E19/4 |
Right rear-end door license plate lamp |
25 H |
| E3e9 |
Left stop lamp, taillamp, parking lamp and side-marker lamp |
22 F |
| E4e9 |
Right stop lamp, taillamp, parking lamp and side-marker lamp |
26 F |
| E5/1 |
Left front fog lamp |
18 L |
| E5/2 |
Right fog lamp |
14 L |
| E6/1 |
Left front side marker lamp {{USA}} |
18 K |
| E6/13 |
Left standing and parking lamp |
19 J |
| E6/14 |
Right standing and parking lamp |
14 J |
| E6/2 |
Right front side-marker lamp {{USA}} |
14 K |
| LIN 1 |
Instrument panel LIN |
3 B |
| M21/1e1 |
Left outside mirror ambient lamp |
8 J |
| M21/2e1 |
Right outside mirror ambient lamp |
1 J |
| N10 |
Front SAM control unit |
13 D |
| N10/8 |
Rear SAM control unit |
18 D |
| N69/1 |
Left front door control unit |
10 J |
| N69/2 |
Right front door control unit |
5 J |
| N70 |
Overhead control panel control unit |
16 A |
| N72/1 |
Upper control panel control unit |
5 B |
| N73 |
EIS [EZS] control unit |
9 A |
| S1 |
Rotary light switch |
2 B |
