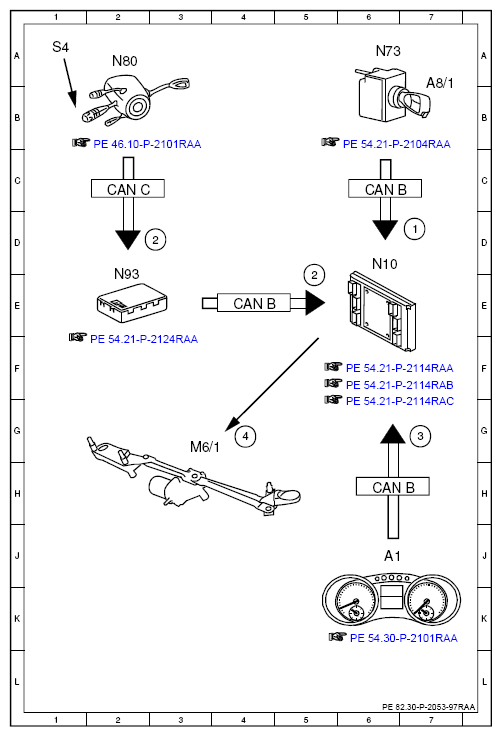

Electrical function schematic for automatic speed reduction - PE82.30-P-2053-97RAA
| Code | Designation | Position |
|---|---|---|
| 1 | Circuit 15, status | 7D |
| 2 | Combination switch, status | 3D |
| 2 | Combination switch, status | 5E |
| 3 | Vehicle speed, signal | 7G |
| 4 | Wiper motor, actuation | 4G |
| A1 | Instrument cluster | 6J |
| A8/1 | Transmitter key | 7B |
| CAN B | Interior CAN | 4E |
| CAN B | Interior CAN | 6C |
| CAN B | Interior CAN | 6H |
| CAN C | Engine compartment CAN | 2C |
| M6/1 | Wiper motor | 3G |
| N10 | Front SAM control unit | 6D |
| N73 | EIS [EZS] control unit | 6A |
| N80 | Steering column module | 2A |
| N93 | Central gateway control unit | 2E |
| S4 | Combination switch | 1A |
