| 1 |
Rotary light switch, status |
12 B |
| 1 |
Rotary light switch, status |
14 C |
| 10 |
Wheel speed, signal |
21 L |
| 11 |
Dynamic curve illumination motor, actuation |
17 H |
| 11 |
Dynamic curve illumination motor, actuation |
17 G |
| 11 |
Dynamic curve illumination motor, actuation |
23 G |
| 11 |
Dynamic curve illumination motor, actuation |
24 H |
| 2 |
Rain/light sensor, status |
7 B |
| 2 |
Rain/light sensor, status |
12 D |
| 3 |
Circuit 61, status |
4 F |
| 3 |
Circuit 61, status |
12 F |
| 3 |
Circuit 61, status |
12 H |
| 3 |
Circuit 61, status |
19 K |
| 4 |
Low beams, actuation |
16 D |
| 4 |
Low beams, actuation |
16 B |
| 4 |
Low beams, actuation |
17 C |
| 4 |
Low beams, actuation |
23 C |
| 4 |
Low beams, actuation |
25 D |
| 4 |
Low beams, actuation |
25 B |
| 5 |
Combination switch, status |
1 L |
| 5 |
Combination switch, status |
2 F |
| 5 |
Combination switch, status |
11 F |
| 5 |
Combination switch, status |
19 L |
| 6 |
Steering angle, signal |
1 K |
| 6 |
Steering angle, signal |
2 G |
| 6 |
Steering angle, signal |
11 F |
| 6 |
Steering angle, signal |
18 L |
| 7 |
Vehicle speed, signal |
14 G |
| 8 |
Reverse gear, status |
3 D |
| 8 |
Reverse gear, status |
11 F |
| 9 |
Cornering illumination, actuation |
17 D |
| 9 |
Cornering illumination, actuation |
23 D |

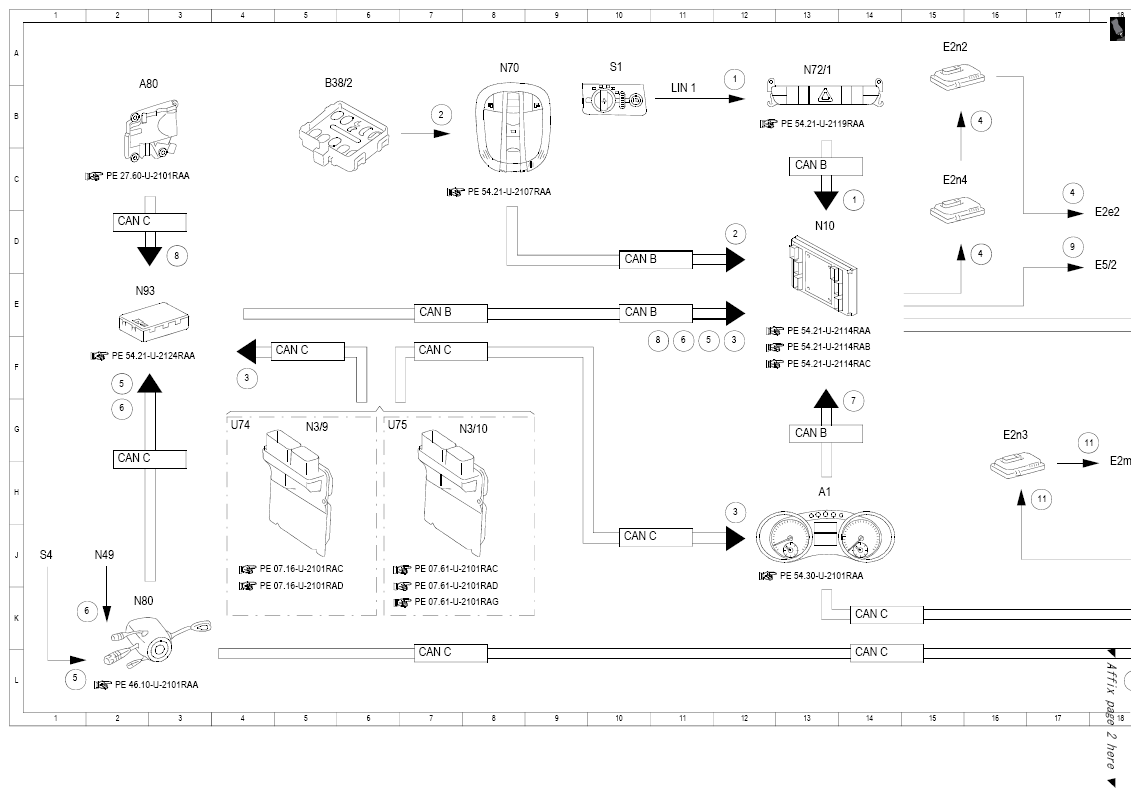

| A1 |
Instrument cluster |
13 H |
| A80 |
Intelligent servo module for DIRECT SELECT |
2 B |
| B38/2 |
Rain/light sensor |
5 B |
| CAN B |
Interior CAN |
7 E |
| CAN B |
Interior CAN |
10 D |
| CAN B |
Interior CAN |
10 E |
| CAN B |
Interior CAN |
13 G |
| CAN B |
Interior CAN |
13 C |
| CAN C |
Engine compartment CAN |
2 H |
| CAN C |
Engine compartment CAN |
2 D |
| CAN C |
Engine compartment CAN |
5 F |
| CAN C |
Engine compartment CAN |
7 L |
| CAN C |
Engine compartment CAN |
7 F |
| CAN C |
Engine compartment CAN |
10 J |
| CAN C |
Engine compartment CAN |
14 L |
| CAN C |
Engine compartment CAN |
14 K |
| CAN C |
Engine compartment CAN |
23 K |

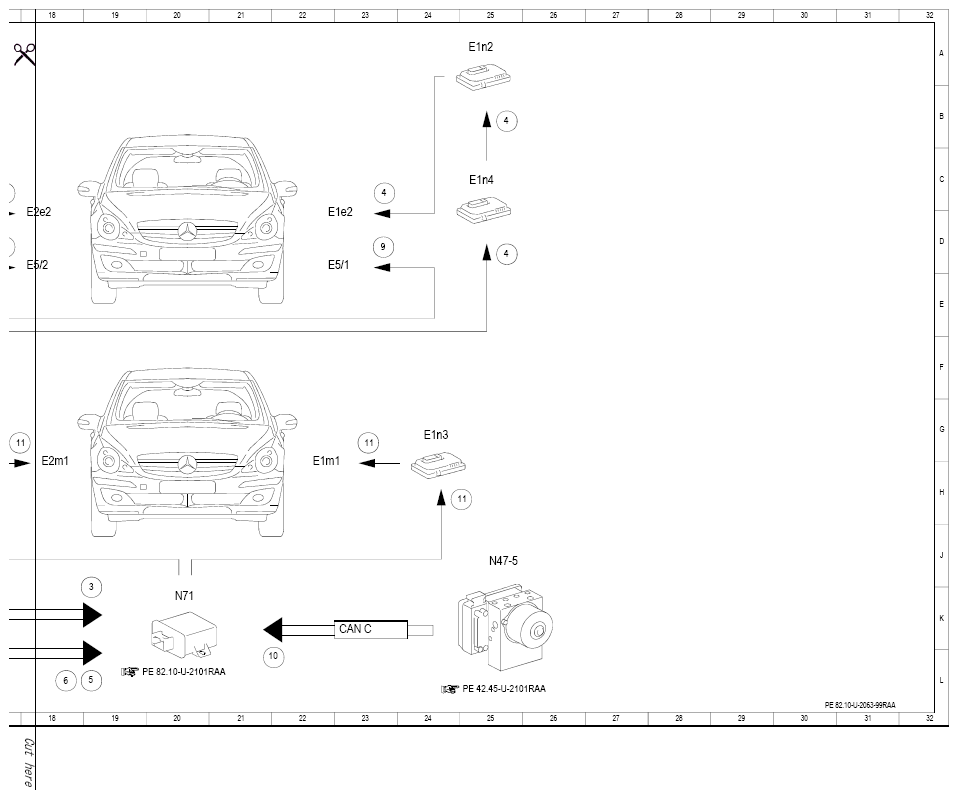

| E1e2 |
Left low beam |
22 D |
| E1m1 |
Left headlamp range adjustment motor |
22 H |
| E1n2 |
Xenon headlamp ignition module |
25 A |
| E1n3 |
HRA [LWR] power module |
24 G |
| E1n4 |
Xenon headlamp supply module |
25 C |
| E2e2 |
Right low beam |
18 D |
| E2m1 |
Right headlamp range adjustment motor |
18 H |
| E2n2 |
Xenon headlamp ignition module |
15 A |
| E2n3 |
HRA [LWR] power module |
16 G |
| E2n4 |
Xenon headlamp supply module |
15 C |
| E5/1 |
Left front fog lamp |
22 E |
| E5/2 |
Right fog lamp |
18 E |
| LIN 1 |
Instrument panel LIN |
11 B |
| N10 |
Front SAM control unit |
13 D |
| N3/10 |
ME-SFI [ME] control unit |
7 G |
| N3/9 |
CDI control unit |
5 G |
| N47-5 |
ESP control unit |
25 J |
| N49 |
Steering angle sensor |
2 J |
| N70 |
Overhead control panel control unit |
8 A |
| N71 |
Headlamp range adjustment control unit |
20 K |
| N72/1 |
Upper control panel control unit |
13 A |
| N80 |
Steering column module |
2 K |
| N93 |
Central gateway control unit |
2 E |
| S1 |
Rotary light switch |
10 A |
| S4 |
Combination switch |
1 J |
| U74 |
Valid for diesel engines |
4 G |
| U75 |
Valid for gasoline engines |
6 G |
