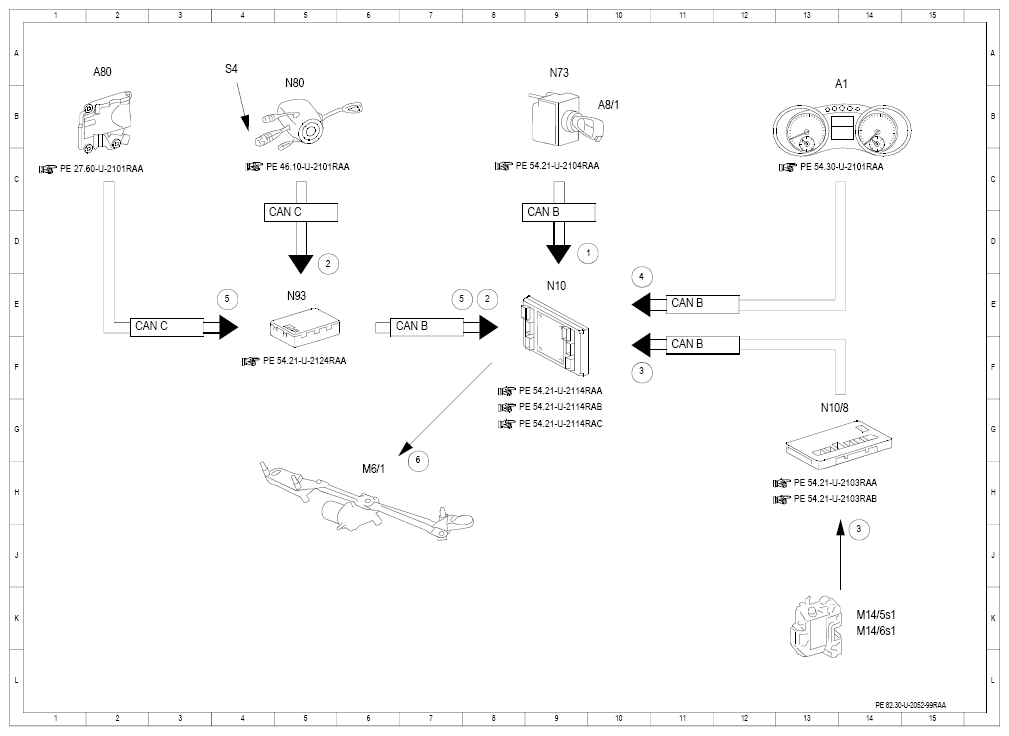

| 1 |
Circuit 15, status |
9 D |
| 2 |
Combination switch, status |
5 D |
| 2 |
Combination switch, status |
8 E |
| 3 |
Rotary tumbler microswitch, status |
10 F |
| 3 |
Rotary tumbler microswitch, status |
14 J |
| 4 |
Vehicle speed, signal |
10 E |
| 5 |
Reverse gear, status |
4 E |
| 5 |
Reverse gear, status |
7 E |
| 6 |
Wiper motor, actuation |
7 H |
| A1 |
Instrument cluster |
13 B |
| A8/1 |
Transmitter key |
10 B |
| A80 |
Intelligent servo module for DIRECT SELECT |
2 A |
| CAN B |
Interior CAN |
6 E |
| CAN B |
Interior CAN |
9 D |
| CAN B |
Interior CAN |
11 F |
| CAN B |
Interior CAN |
11 E |
| CAN C |
Engine compartment CAN |
2 E |
| CAN C |
Engine compartment CAN |
4 D |
| M14/5s1 |
Right front door rotary tumbler microswitch |
14 K |
| M14/6s1 |
Left front door rotary tumbler microswitch |
14 K |
| M6/1 |
Wiper motor |
6 H |
| N10 |
Front SAM control unit |
9 E |
| N10/8 |
Rear SAM control unit |
13 G |
| N73 |
EIS [EZS] control unit |
9 A |
| N80 |
Steering column module |
5 B |
| N93 |
Central gateway control unit |
5 E |
| S4 |
Combination switch |
4 A |
