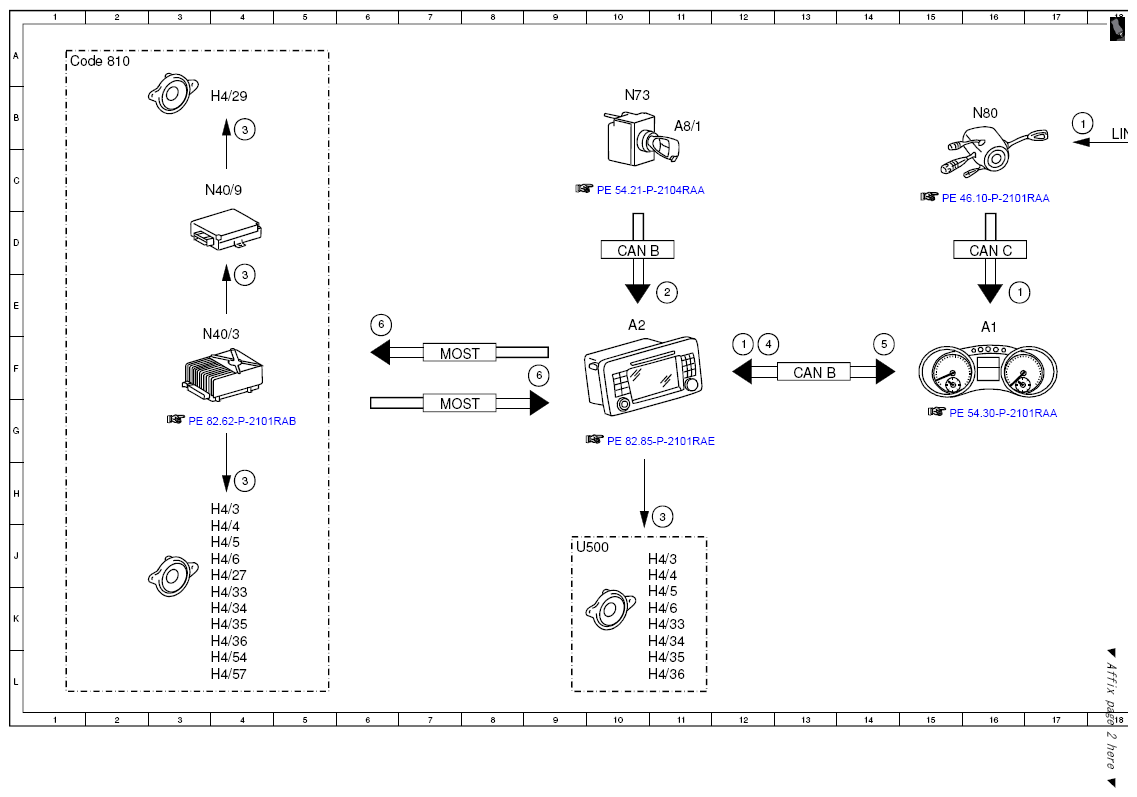

| 1 |
Multifunction steering wheel button group, signal |
17B |
| 1 |
Multifunction steering wheel button group, signal |
12F |
| 1 |
Multifunction steering wheel button group, signal |
16E |
| 2 |
Circuit 15R, status |
11E |
| 3 |
Voice output, signal |
4H |
| 3 |
Voice output, signal |
11H |
| 3 |
Voice output, signal |
4E |
| 3 |
Voice output, signal |
4B |
| 4 |
Vehicle speed, signal |
12E |
| 5 |
Instrument cluster, message |
15E |
| 6 |
Sound system amplifier, actuation |
6E |
| 6 |
Sound system amplifier, actuation |
6F |
| A1 |
Instrument cluster |
16E |
| A2 |
Radio |
10E |
| A8/1 |
Transmitter key |
11B |
| CAN B |
Interior CAN |
10D |
| CAN B |
Interior CAN |
13F |
| CAN C |
Engine compartment CAN |
16D |
| Code 810 |
Sound system |
2A |
| H4/27 |
Center cockpit speaker (centerfill) |
3J |
| H4/29 |
Subwoofer |
3B |
| H4/3 |
Left rear door speaker |
3H |
| H4/3 |
Left rear door speaker |
10J |
| H4/33 |
Left front door tweeter |
3K |
| H4/33 |
Left front door tweeter |
10K |
| H4/34 |
Right front door tweeter |
3K |
| H4/34 |
Right front door tweeter |
10K |
| H4/35 |
Left rear door tweeter |
3K |
| H4/35 |
Left rear door tweeter |
10L |
| H4/36 |
Right rear door tweeter |
3K |
| H4/36 |
Right rear door tweeter |
10L |
| H4/4 |
Right rear door speaker |
3J |
| H4/4 |
Right rear door speaker |
10J |
| H4/5 |
Left front door speaker |
3J |
| H4/5 |
Left front door speaker |
10K |
| H4/54 |
Left rear surround speaker |
3L |
| H4/57 |
Right rear surround speaker |
3L |
| H4/6 |
Right front door speaker |
3J |
| H4/6 |
Right front door speaker |
10K |
| LIN E1 |
Steering LIN |
18B |
| MOST |
Media Oriented System Transport |
7E |
| MOST |
Media Oriented System Transport |
7F |
| N40/3 |
Amplifier for sound system |
4F |
| N40/9 |
Subwoofer amplifier |
4C |
| N73 |
EIS [EZS] control unit |
10B |
| N80 |
Steering column module |
16B |
| S110 |
Left multifunction steering wheel button group |
19B |
| S111 |
Right multifunction steering wheel button group |
21B |
| U500 |
Not valid for Sound System |
9J |
