| 1 |

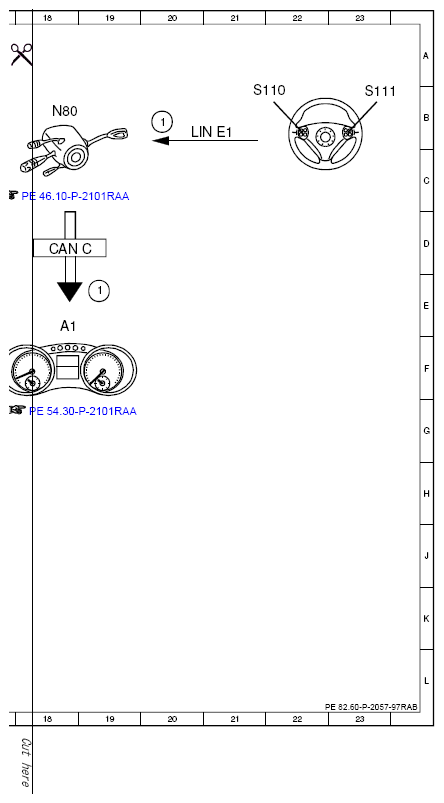

Multifunction steering wheel button group, signal |
20B |
| 1 |
Multifunction steering wheel button group, signal |
15E |
| 1 |
Multifunction steering wheel button group, signal |
19E |
| 2 |
Hands-free system microphone group, signal |
13E |
| 3 |

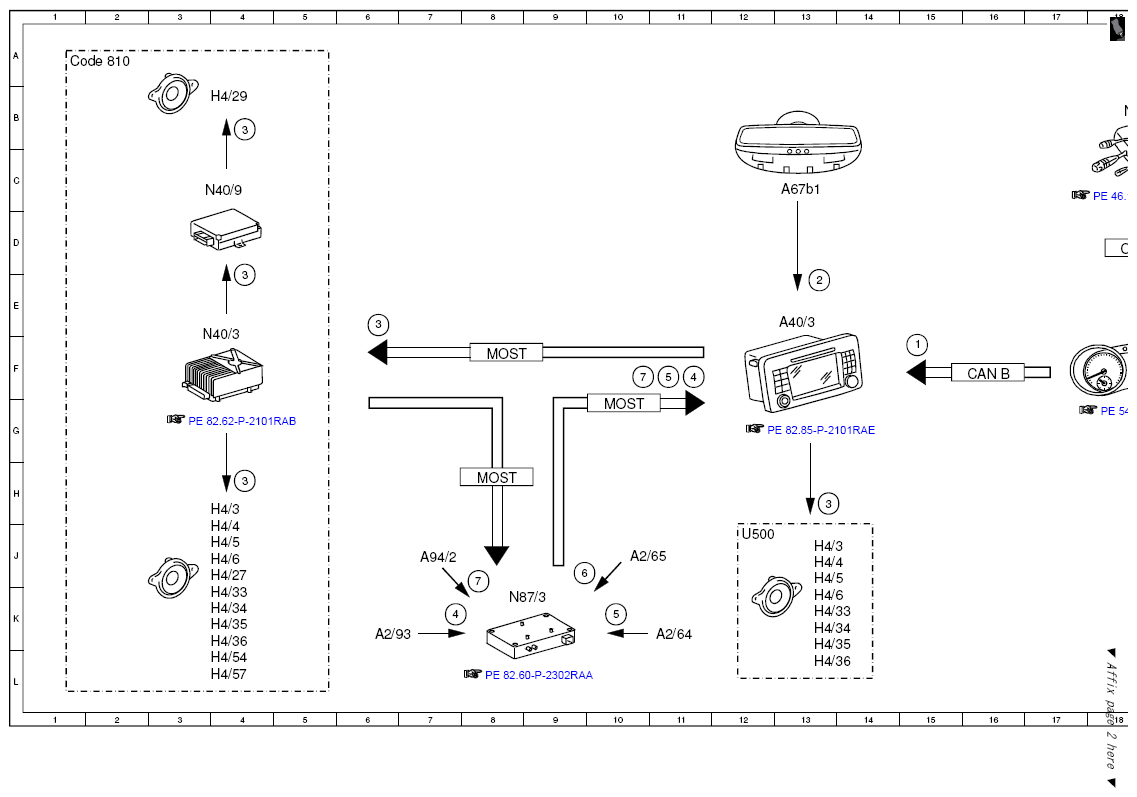

Audio, signal |
4H |
| 3 |
Audio, signal |
4E |
| 3 |
Audio, signal |
4B |
| 3 |
Audio, signal |
13H |
| 3 |
Audio, signal |
6E |
| 4 |
DAB/L-band antenna, signal |
7K |
| 4 |
DAB/L-band antenna, signal |
11F |
| 5 |
TV1, signal |
10K |
| 5 |
TV1, signal |
11F |
| 6 |
TV4 and DABIII, signal |
9J |
| 7 |
DAB band III, signal |
8J |
| 7 |
DAB band III, signal |
10F |
| A1 |
Instrument cluster |
18E |
| A2/64 |
Left antenna amplifier module |
11K |
| A2/65 |
Right antenna amplifier module |
10J |
| A2/93 |
Roof antenna module |
6K |
| A40/3 |
COMAND operating, display and control unit |
13E |
| A67b1 |
Hands-free system microphone group |
13C |
| A94/2 |
TV 2 antenna amplifier |
7J |
| CAN B |
Interior CAN |
16F |
| CAN C |
Engine compartment CAN |
18D |
| Code 810 |
Sound system |
2A |
| H4/27 |
Center cockpit speaker (centerfill) |
3J |
| H4/29 |
Subwoofer |
3B |
| H4/3 |
Left rear door speaker |
3H |
| H4/3 |
Left rear door speaker |
13J |
| H4/33 |
Left front door tweeter |
3K |
| H4/33 |
Left front door tweeter |
13K |
| H4/34 |
Right front door tweeter |
3K |
| H4/34 |
Right front door tweeter |
13K |
| H4/35 |
Left rear door tweeter |
3K |
| H4/35 |
Left rear door tweeter |
13K |
| H4/36 |
Right rear door tweeter |
3K |
| H4/36 |
Right rear door tweeter |
13L |
| H4/4 |
Right rear door speaker |
3J |
| H4/4 |
Right rear door speaker |
13J |
| H4/5 |
Left front door speaker |
3J |
| H4/5 |
Left front door speaker |
13J |
| H4/54 |
Left rear surround speaker |
3L |
| H4/57 |
Right rear surround speaker |
3L |
| H4/6 |
Right front door speaker |
3J |
| H4/6 |
Right front door speaker |
13K |
| LIN E1 |
Steering LIN |
20B |
| MOST |
Media Oriented System Transport |
5F |
| MOST |
Media Oriented System Transport |
8H |
| MOST |
Media Oriented System Transport |
10G |
| N40/3 |
Amplifier for sound system |
4F |
| N40/9 |
Subwoofer amplifier |
4C |
| N80 |
Steering column module |
18B |
| N87/3 |
Digital Audio Broadcasting control unit |
8K |
| S110 |
Left multifunction steering wheel button group |
21B |
| S111 |
Right multifunction steering wheel button group |
23B |
| U500 |
Not valid for Sound System |
12J |
