| 1 |
Rain/light sensor, status |
16F |
| 10 |
Footwell lamp, actuation |
3F |
| 10 |
Footwell lamp, actuation |
2G |
| 11 |
OFF delay time, status |
14C |
| 12 |
Rotary tumbler microswitch, status |
12D |
| 13 |
Rear-end door locking unit, status |
12D |
| 14 |
Entrance/exit lamp, request |
6D |
| 14 |
Entrance/exit lamp, request |
8H |
| 15 |
Entrance/exit lamp, actuation |
3B |
| 15 |
Entrance/exit lamp, actuation |
3J |
| 16 |
Door inside handle illumination, actuation |
2D |
| 16 |
Door inside handle illumination, actuation |
2K |
| 17 |
Warning lamp, actuation |
2D |
| 18 |
Ambient lamp, actuation |
2E |
| 19 |
Load compartment illumination, actuation |
3C |
| 2 |
Circuit 15, status |
13F |
| 3 |
Central locking (CL[ZV]), status |
13G |
| 4 |
ATA [EDW] alarm, status |
13D |
| 5 |
Crash, signal |
17F |
| 5 |
Crash, signal |
23G |
| 6 |
Hazard warning flasher switch, status |
15G |
| 6 |
Hazard warning flasher switch, status |
15K |
| 7 |
Interior lights, actuation |
19A |
| 7 |
Interior lights, actuation |
19E |
| 8 |
Reading lamp, actuation |
18D |
| 9 |
Footwell illumination, request |
7E |

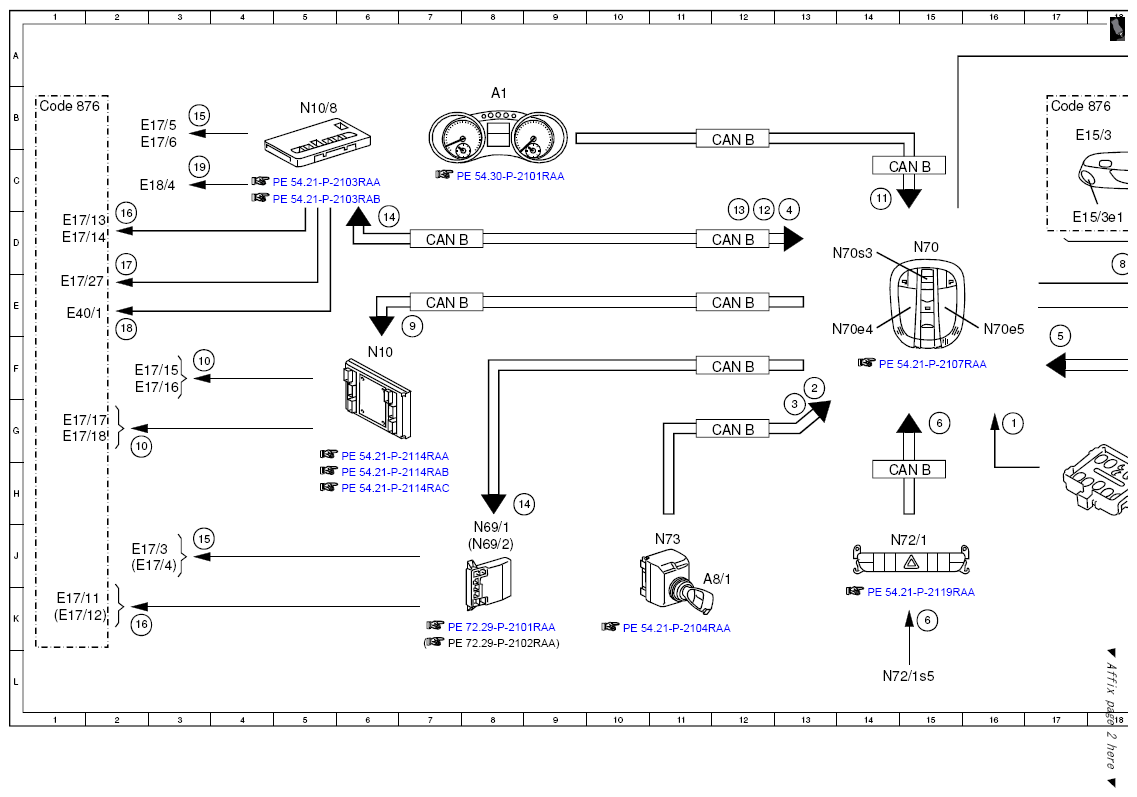

| A1 |
Instrument cluster |
8B |
| A8/1 |
Transmitter key |
11J |
| B38/2 |
Rain/light sensor |
18G |
| CAN B |
Interior CAN |
7D |
| CAN B |
Interior CAN |
7E |
| CAN B |
Interior CAN |
12B |
| CAN B |
Interior CAN |
12D |
| CAN B |
Interior CAN |
12E |
| CAN B |
Interior CAN |
12F |
| CAN B |
Interior CAN |
12G |
| CAN B |
Interior CAN |
15C |
| CAN B |
Interior CAN |
15G |
| CAN B |
Interior CAN |
19F |
| CAN C |
Engine compartment CAN |
23H |
| Code 876 |
Interior lights package |
1B |
| Code 876 |
Interior lights package |
17B |

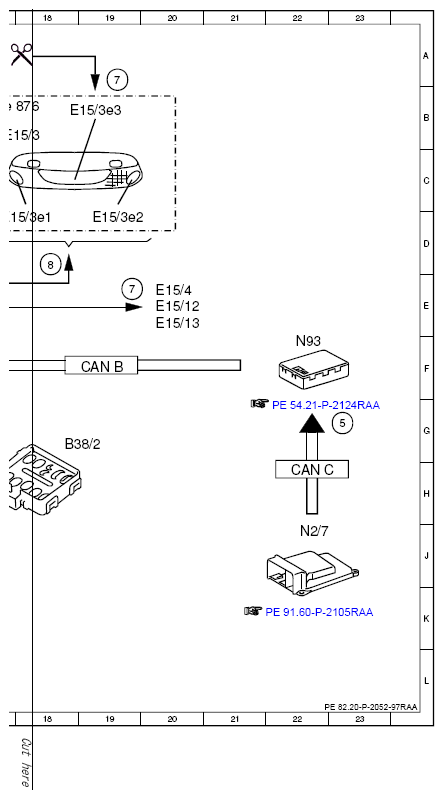

| E15/12 |
Left dome lamp, 2nd seat row |
20E |
| E15/13 |
Right dome lamp, 2nd seat row |
20E |
| E15/3 |
Left dome lamp, 3rd seat row |
17B |
| E15/3e1 |
3rd seat row left reading lamp |
17D |
| E15/3e2 |
3rd seat row right reading lamp |
19D |
| E15/3e3 |
Left dome lamp, 3rd seat row |
19B |
| E15/4 |
Central load compartment dome lamp |
20E |
| E17/11 |
Left front door inside handle illumination |
1K |
| E17/12 |
Right front door inside handle illumination |
1K |
| E17/13 |
Left rear inside door handle illumination |
1D |
| E17/14 |
Right rear door inside handle illumination |
1D |
| E17/15 |
Right front footwell lamp |
2F |
| E17/16 |
Left front footwell lamp |
2F |
| E17/17 |
Right rear footwell lamp |
1G |
| E17/18 |
Left rear footwell lamp |
1G |
| E17/27 |
Rear-end door warning lamp |
1E |
| E17/3 |
Left front door entrance/exit lamp |
2J |
| E17/4 |
Right front door entrance/exit lamp |
2J |
| E17/5 |
Left rear door entrance/exit lamp |
2B |
| E17/6 |
Right rear door entrance/exit lamp |
2B |
| E18/4 |
Right luggage compartment lamp |
2C |
| E40/1 |
Rear-end door ambient lamp |
1E |
| N10 |
Front SAM control unit |
6F |
| N10/8 |
Rear SAM control unit |
5B |
| N2/7 |
Restraint systems control unit |
22J |
| N69/1 |
Left front door control unit |
8J |
| N69/2 |
Right front door control unit |
8J |
| N70 |
Overhead control panel control unit |
15D |
| N70e4 |
Left interior lamp, 1st seat row |
14E |
| N70e5 |
Right interior lamp, 1st seat row |
16E |
| N70s3 |
Door contact ON and OFF switch |
14D |
| N72/1 |
Upper control panel control unit |
15J |
| N72/1s5 |
Hazard warning system switch |
14L |
| N73 |
EIS [EZS] control unit |
11J |
| N93 |
Central gateway control unit |
22F |
