Removing and installing loudspeaker in instrument panel - AR82.62-P-7833RT

MODELS 251 with CODE (810) Sound system

Shown on vehicles with Parktronic system (PTS), code 220

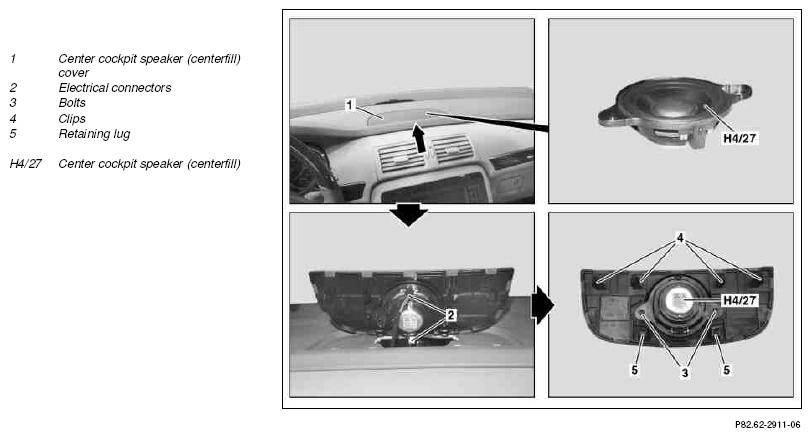

Fig 1: Identifying Loudspeaker In Instrument Panel Remove/Install Components - Shown On Code 220

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Switch off ignition and remove the transmitter key from the EIS [EZS] control unit	On vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until the ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m). Ensure that the radio is switched off.
2	Carefully unlatch center cockpit speaker (centerfill) cover (1) from the rear edge (arrow) and pull upward out of the installation opening	Protect instrument panel from being scratched. Insert center cockpit speaker (centerfill) cover (1) first with the two front retaining lugs (5), then engage the clips (4).
		Long wedge	Figure
3	Separate the electrical connectors (2)
4	Unscrew screws (3) and detach center cockpit speaker (centerfill) (H4/27)
5	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
