Removing and installing backup antenna for Tele Aid emergency call system - AR82.95-P-0004RT
MODELS 251 with CODE (359) TELE AID emergency call system with CODE (494) USA version
| Remove/Install | |||
| 1 | Switch off ignition and remove the transmitter key from the EIS [EZS] control unit | Press keyless go start/stop button repeatedly until ignition is switched off Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m). |
|

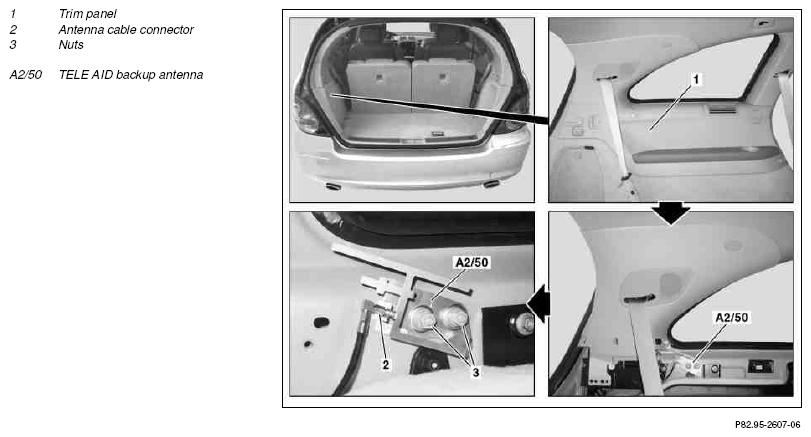

| 2 | Remove paneling (1) in the side of the luggage compartment | AR68.30-P-4800RT | |
| 3 | Disconnect antenna cable connector (2) | ||
| 4 | Unscrew nuts (3) and remove TELE AID backup antenna (A2/50) | ||
| 5 | Install in the reverse order |
