Remove/install windshield washer system pump - AR82.35-P-6002RT

MODELS 251

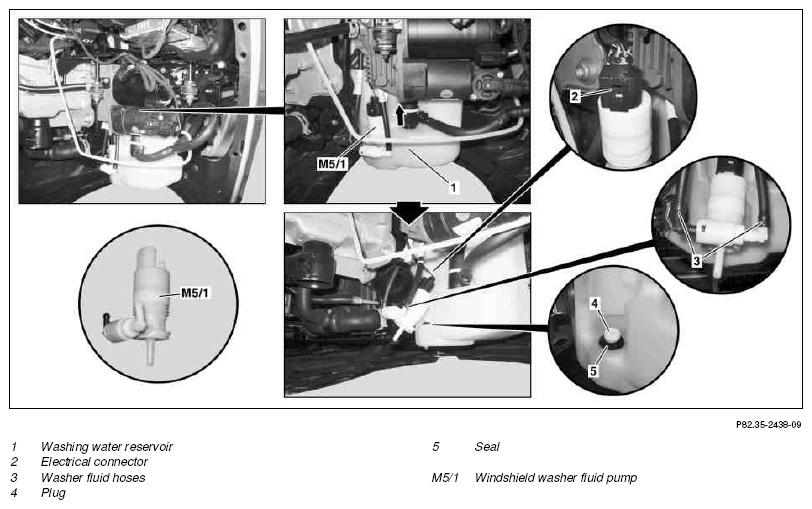

Fig 1: Identifying Windshield Washer System Pump Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove front section of fender liner in front fender	Front section of fender liner in right front fender Wheel does not need to be removed.	AR88.10-P-1310RT
2	Remove windshield washer fluid pump (M5/1) upward (arrow) out of the washer fluid reservoir (1) and seal off using stop plug (4)	Collect escaping washer fluid with a suitable reservoir. Check seal (5), replace if necessary. Note correct installation position.
		Mounting wedge	Figure
		Set of plugs	Fig 3
3	Disconnect electric connector (2)
4	Detach washer fluid hoses (3) from the windshield washer fluid pump (M5/1)
5	Remove windshield washer water pump (M5/1)
6	Install in the reverse order
7	Fill washer fluid reservoir (1)
	Check windshield washing unit fluid level, top up if necessary		AP82.35-P-8210RT
8	Carry out function check of the windshield wipers and the windshield washer system
