Remove/install the fluid level sensor for the windshield washer system - AR82.35-P-6005RT
MODEL 251
Shown on vehicle with headlamp cleaning system

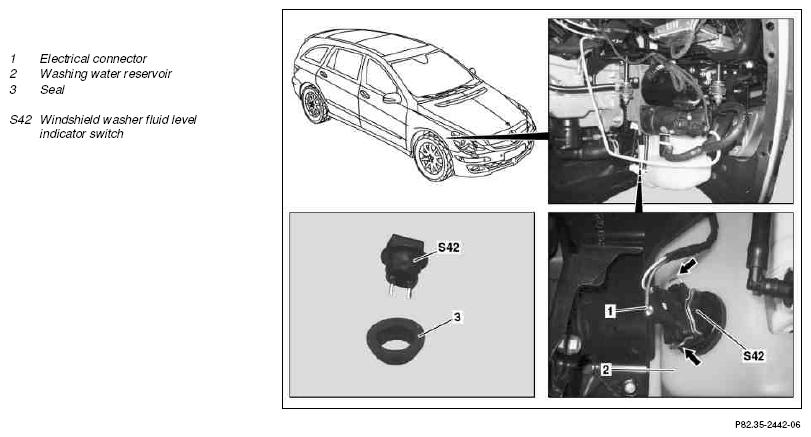

Fig 1: Identifying Windshield Washer System Fluid Level Sensor Remove/Install Components - Shown On Vehicle
| Remove/install | |||
| 1 | Remove front section of fender liner in front fender | AR88.10-P-1310RT | |
| 2 | Press clips (arrows) inward and disconnect electrical connector (1) | ||
| 3 | Pry windshield washer fluid level indicator switch (S42) off the washer fluid reservoir (2) using long wedge | ||
| Figure | |||
| 4 | Install in the reverse order | ||
| 5 | Fill washer fluid reservoir (2) | ||
| Windshield washer system - inspect fluid level, adjust to correct level | AP82.35-P-8210RT |
