Remove/install taillamp - AR82.10-P-4905RT

MODEL 251

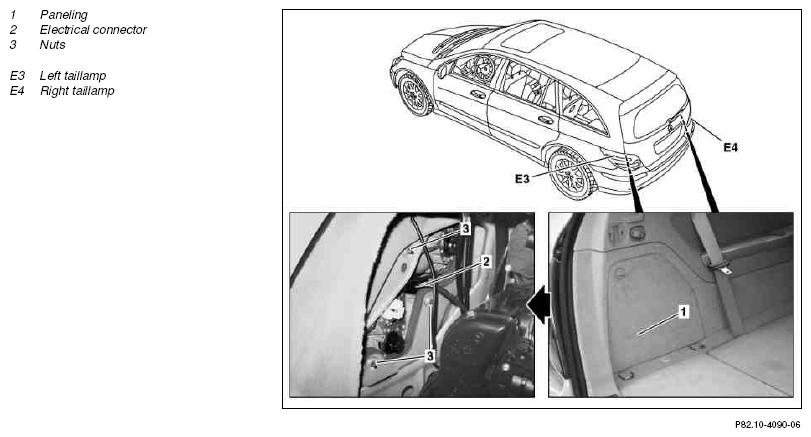

Fig 1: Identifying Taillamp Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and remove transmitter key from EIS control unit	On vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
2	Remove paneling (1) in load compartment
3	Disconnect electric connector (2)
4	Unscrew nuts (3).
5	Remove left taillamp (E3) or right taillamp (E4) toward rear	Ensure that rubber seal is fastened properly.
6	Install in the reverse order
