Remove/install tailgate spray nozzle - AR82.35-P-6920RT

MODELS 251

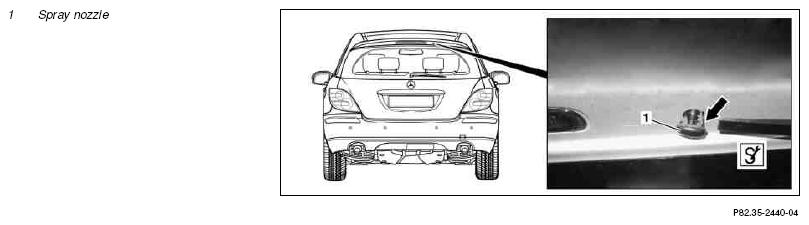

Fig 1: Removing/Installing Tailgate Spray Nozzle

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Unclip spray nozzle (1) from rear-end door	Avoid paint damage.
		Mounting wedge	Figure
2	Detach spray nozzle (1) from washer fluid hose
3	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
