Remove/install standing lamps - AR82.10-P-4723RT

MODELS 251

Illustrated on left side of vehicle

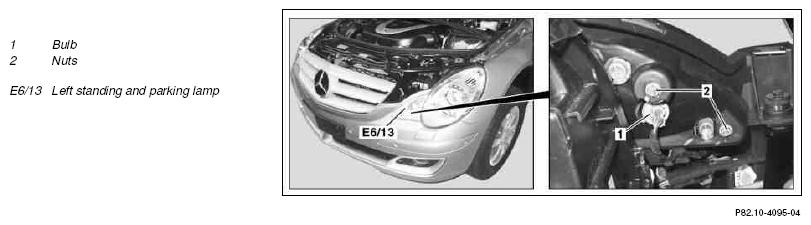

Fig 1: Identifying Standing Lamps Remove/Install Components - Illustrated On Left Side Of Vehicle

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Switch off light	The light switch must be in position "0".
2	Remove bulb (1)	Removal:  Turn bulb (1) counterclockwise and remove from the rear. Insert bulb (1) from the rear and tighten clockwise.
3	Unscrew nuts (2)
4	Remove left standing and parking lamp (E6/13) or right standing and parking lamp (E6/14) to the front
5	Install in the reverse order
