Remove/install side-marker lamp - AR82.10-P-2000RT

MODEL 251 with CODE (494) USA version up to model year 2011

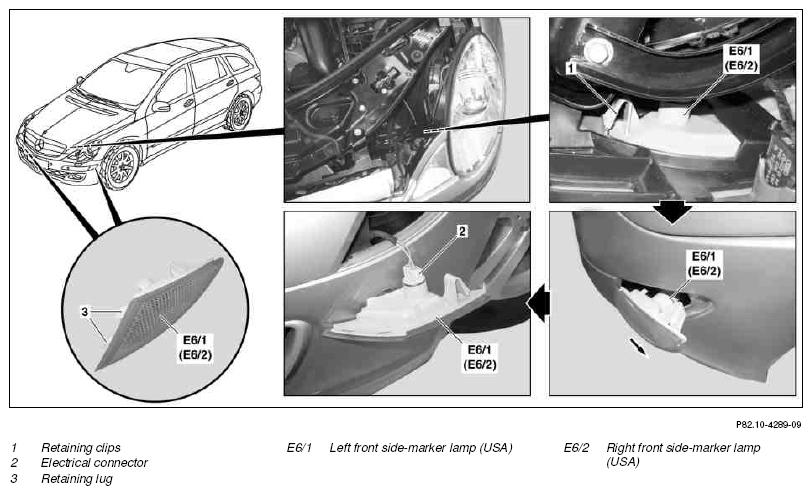

Fig 1: Identifying Side-Marker Lamp Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open engine hood		AR88.40-P-1000RT
2	Press retaining clips (1) toward inside and pry left front side-marker lamp (USA) (E6/1) or right front side-marker lamp (USA) (E6/2) out of bumper (arrow)	Ensure that retaining lugs (3) are seated correctly in bumper.
3	Disconnect electrical connector (2) from left front side-marker lamp (USA) (E6/1) or right front side-marker lamp (USA) (E6/2)
4	Install in the reverse order
5	Perform function test
