Remove/install license plate lamps - AR82.10-P-5161RT

MODELS 251

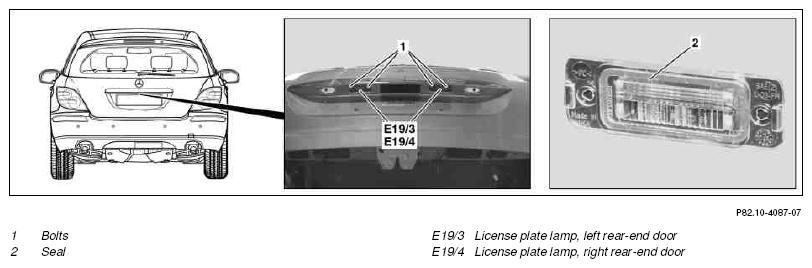

Fig 1: Identifying License Plate Lamps Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Unscrew bolts (1)
2	Pry off license plate lamp, left rear-end door (E19/3) or license plate lamp, right rear-end door (E19/4) using mounting wedge	Check seal (2) of license plate lamp for condition and proper seating.
		Mounting wedge	Figure
3	Install in the reverse order
4	Perform a function test

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
