Remove/install bracket for portable CTEL - AR82.70-P-8918RT

MODEL 251 with CODE (386) Preinstallation for telephone "Handy", UPCI system with CODE (388) Telephone "Handy", UPCI system

Shown on vehicle with telephone "Handy", UPCI system, code 388 and USA version, code 494

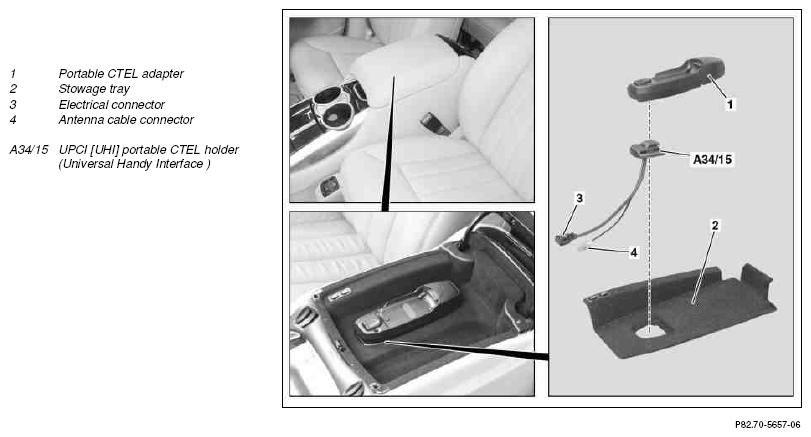

Fig 1: Identifying Portable CTEL Remove/Install Components - Shown On Code 388 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

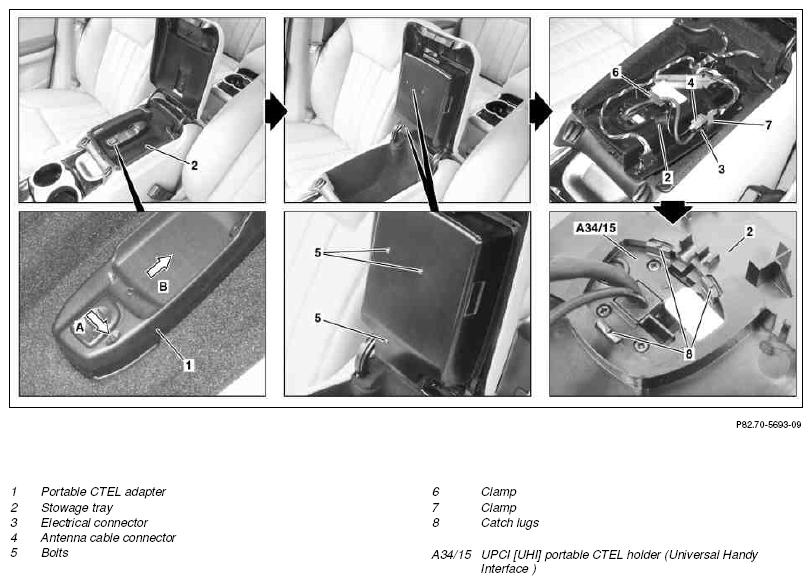

Fig 2: Identifying Portable CTEL Remove/Install Components - Shown On Code 388 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on vehicle with telephone "Handy", UPCI system, code 388 and USA version, code 494

	Remove/install
1	Open upper stowage box in center console
2	Remove portable CTEL adapter (1)	Hold down release button on portable CTEL adapter (arrow A) and slide portable CTEL adapter toward rear (arrow B) for removal
3	Open lower stowage box in center console
4	Unscrew bolts (5)
5	Fold back lower stowage box
6	Detach stowage tray (2) and turn	Do not damage electric wiring harnesses.
7	Remove clips (6, 7) and expose electric wiring harnesses.	Remove clips carefully!
8	Disconnect antenna cable connector (4)
9	Separate electrical connector (3)
10	Remove UPCI portable CTEL holder (Universal Handy Interface) (A34/15) from stowage tray (2)	Carefully unclip UPCI portable CTEL holder (Universal Handy Interface) from the three catch lugs (8).
11	Install in the reverse order
