Remove/install antenna splitter - AR82.70-P-8953RT

MODEL 251 with CODE (359) TELE AID emergency call system Only in combination with navigation system

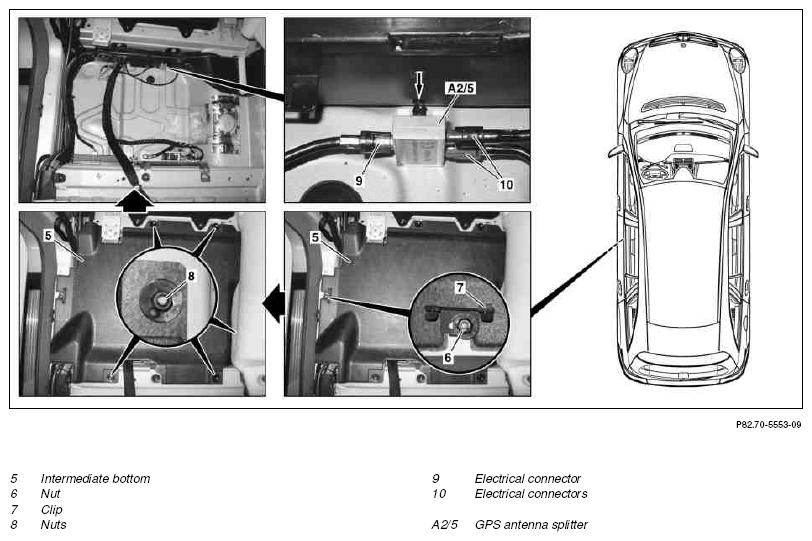

Fig 1: Identifying Antenna Splitter Remove/Install Components

Courtesy of MERCEDES-BENZ USA

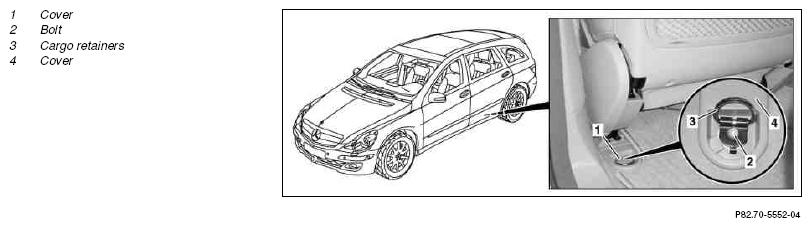

Fig 2: Identifying Antenna Splitter Remove/Install Components - Illustration On Model 251.1

Courtesy of MERCEDES-BENZ USA

Front seat removed for better illustration on model 251.1

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge	All models	AH54.00-P-0001-01A
1	Switch off ignition and remove the transmitter key from the EIS [EZS] control unit	On vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
2	Remove rear seat on driver side		AR91.12-P-1000RT
3	Remove rear door sill molding.	Left side of vehicle	AR68.30-P-4100RT
4	Remove cover (1).
5	Unscrew bolt (2).		*BA68.50-P-1001-03G
6	Remove cargo retainers (3) and cover (4)
7	Lift floor covering until nuts (8) on intermediate bottom (5) are accessible
8	Unscrew nut (6) and nuts (8) and remove intermediate bottom (5)	Do not mix up nut (6) and nuts (8) Ensure that clip (7) is seated correctly.
9	Unclip GPS antenna splitter (A2/5) from cable duct (arrow)	Ensure that clips are seated correctly.
10	Disconnect electrical connector (9) and electrical connectors (10)	Press locking lugs of connectors together and disconnect connectors from GPS antenna splitter (A2/5) Ensure that locking lugs arrest properly
11	Remove GPS antenna splitter (A2/5)
12	Install in the reverse order
