Remove/install additional turn signal lamp - AR82.25-P-4726RT
MODEL 251

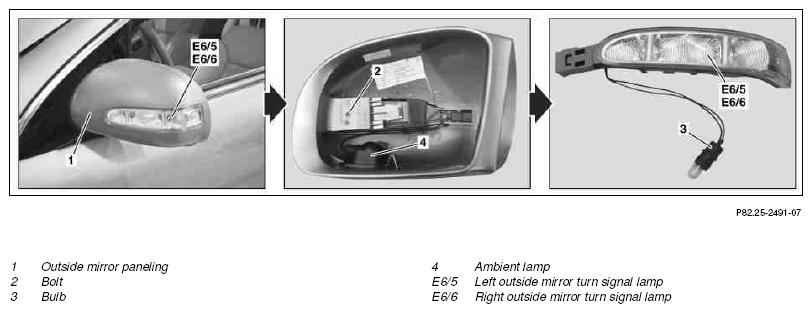

Shown on left outside mirror
| Remove/install | ||
| 1 | Remove outside mirror paneling (1) | AR88.70-P-9040RT |
| 2 | Unscrew bolt (2). | |
| 3 | Pull bulb (3) out of ambient lamp (4) | |
| 4 | Remove left outside mirror turn signal lamp (E6/5) or right outside mirror turn signal lamp (E6/6) from outside mirror paneling (1) | |
| 5 | Install in the reverse order | |
| 6 | Perform a function test |
