Remove/install E-net compensator - AR82.70-P-0010GZ

MODEL 164, 251 with CODE (386) Preinstallation for telephone "Cell phone", UPCI [UHI] system

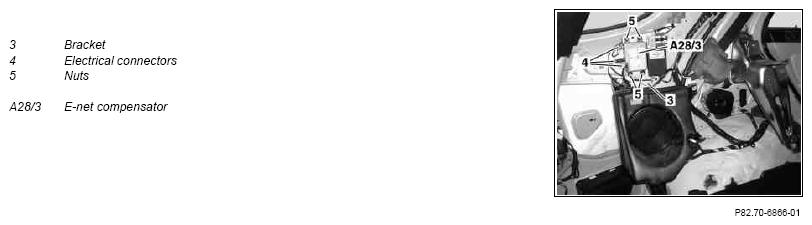

Shown on model 164.1

Fig 1: Identifying E-Net Compensator Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

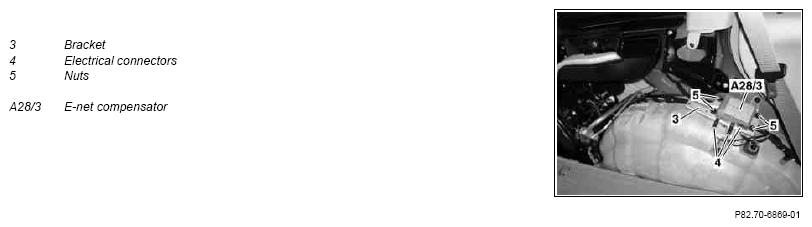

Shown on model 164.8

Fig 2: Identifying E-Net Compensator Remove/Install Components - Shown On Model 164.8

Courtesy of MERCEDES-BENZ USA

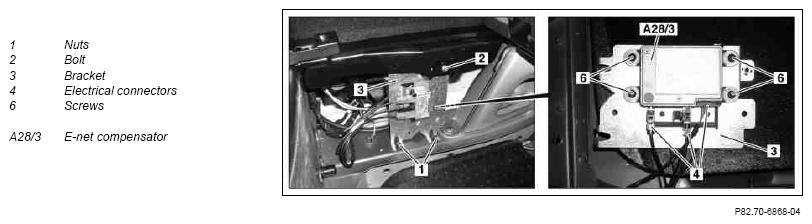

Illustrated on model 251

Fig 3: Identifying E-Net Compensator Remove/Install Components - Shown On Model 251

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1.1	Remove paneling from left  C-pillar	Model 164.1. Do not  remove screw/bolt at belt end fitting.	AR68.30-P-4490GZ
1.2	Remove left  paneling for spare tire well	Model 164.8.	AR68.30-P-4620GZ
1.3	Remove side paneling in left side of trunk	Model 251.	AR68.30-P-4800RT
2	Unscrew nuts (1) and bolt (2)	Model 164.8.
3	Tilt back bracket (3)	Model 164.8.
4	Separate electrical connectors (4)
5	Unscrew nuts (5) or bolts (6)
6	Remove E-net compensator (A28/3) from bracket (3)
7	Install in the reverse order
