Remove/install DVD player - AR82.60-P-7505RT

MODEL 251 up to Model Year 2007 with CODE (864) Rear entertainment system

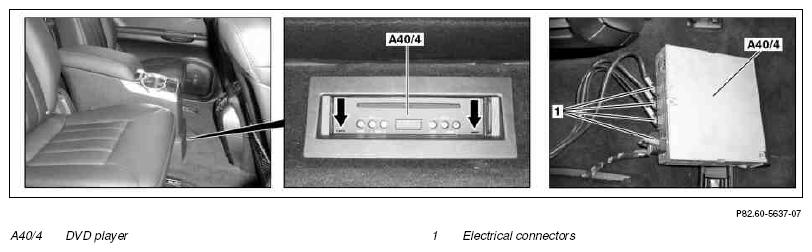

Fig 1: Identifying DVD Player Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Switch off ignition and remove transmitter key from EIS control unit	On vehicles with code (889) Keyless-Go: Press Keyless-Go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
2	Pull DVD player (A40/4) out toward front with removal fixture (arrows)	Removal fixture	Fig 2
3	Separate electrical connectors (1)
4	Install in the reverse order

Fig 2: Identifying Removal Assembly (000 589 88 63 00)

Courtesy of MERCEDES-BENZ USA
