Remove, install lamp for vanity mirror - AR82.20-P-5582RT

MODEL 251 with CODE (543) Sun visors with illuminated mirror Bulb replacement of lamp for vanity mirror

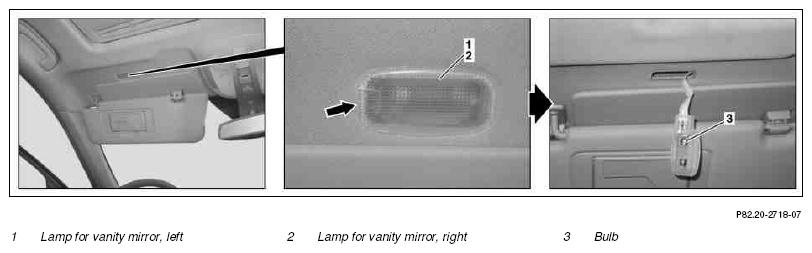

Fig 1: Identifying Vanity Mirror Lamp Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Carefully pry lamp for left vanity mirror (1) or lamp for right vanity mirror (2) out of the headliner	For removal, insert a long wedge into the cutout (arrow) at the side. The lamp for the left vanity mirror and the lamp for the right vanity mirror cannot be individually exchanged. Only the bulbs can be replaced.
		Long wedge	Figure
2	Remove bulb (3)
3	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
