| 1 |
Rotary light switch, status |
10 D |
| 1 |
Rotary light switch, status |
15 B |
| 10 |
Headlamp range adjustment motor, actuation |
17 J |
| 10 |
Headlamp range adjustment motor, actuation |
22 J |
| 2 |
Circuit 15, status |
9 D |
| 3 |
Low beams, actuation |
17 H |
| 3 |
Low beams, actuation |
23 H |
| 4 |
Combination switch, status |
3 B |
| 4 |
Combination switch, status |
4 D |
| 4 |
Combination switch, status |
7 E |
| 5 |
High beams, actuation |
17 H |
| 5 |
High beams, actuation |
22 H |
| 6 |
High beam indicator lamp, actuation |
9 J |
| 7 |
Daytime running lights, request |
9 G |
| 8 |
Circuit 61, status |
4 F |
| 8 |
Circuit 61, status |
7 E |
| 9 |
Rain/light sensor, status |
10 F |
| 9 |
Rain/light sensor, status |
14 K |

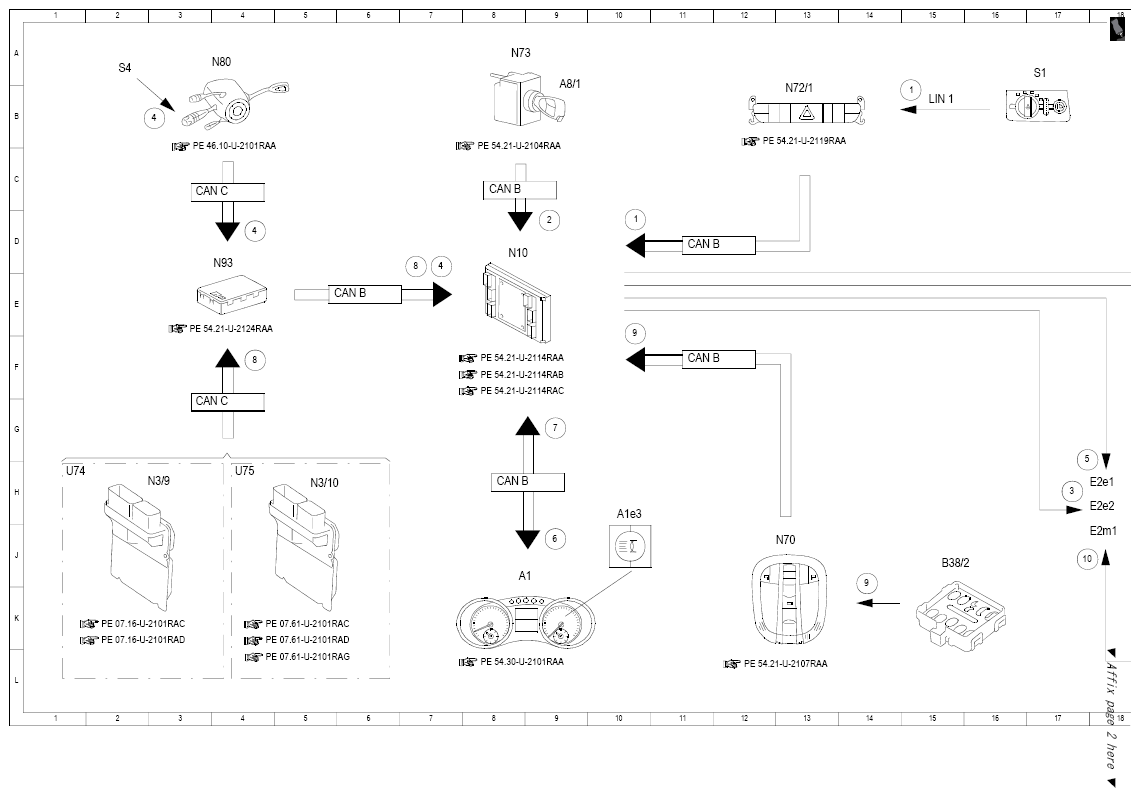

| A1 |
Instrument cluster |
8 J |
| A1e3 |
High beam indicator lamp |
10 H |
| A8/1 |
Transmitter key |
9 B |
| B38/2 |
Rain/light sensor |
15 J |
| CAN B |
Interior CAN |
5 E |
| CAN B |
Interior CAN |
8 C |
| CAN B |
Interior CAN |
8 H |
| CAN B |
Interior CAN |
11 F |
| CAN B |
Interior CAN |
11 D |
| CAN C |
Engine compartment CAN |
3 G |
| CAN C |
Engine compartment CAN |
3 C |

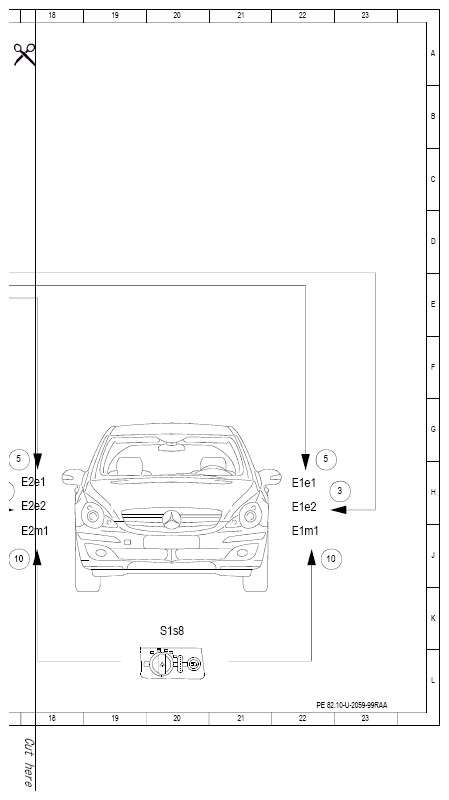

| E1e1 |
Left high beam |
22 H |
| E1e2 |
Left low beam |
22 H |
| E1m1 |
Left headlamp range adjustment motor |
22 J |
| E2e1 |
Right high beam |
17 H |
| E2e2 |
Right low beam |
17 H |
| E2m1 |
Right headlamp range adjustment motor |
17 J |
| LIN 1 |
Instrument panel LIN |
15 B |
| N10 |
Front SAM control unit |
8 D |
| N3/10 |
ME-SFI [ME] control unit |
5 H |
| N3/9 |
CDI control unit |
2 H |
| N70 |
Overhead control panel control unit |
12 J |
| N72/1 |
Upper control panel control unit |
13 B |
| N73 |
EIS [EZS] control unit |
8 A |
| N80 |
Steering column module |
3 A |
| N93 |
Central gateway control unit |
3 E |
| S1 |
Rotary light switch |
17 A |
| S1s8 |
HRA [LWR] selector wheel |
20 K |
| S4 |
Combination switch |
2 A |
| U74 |
Valid for diesel engines |
1 H |
| U75 |
Valid for gasoline engines |
4 H |
