Removing/installing the accelerator pedal - AR30.12-P-1321RT

MODEL 251

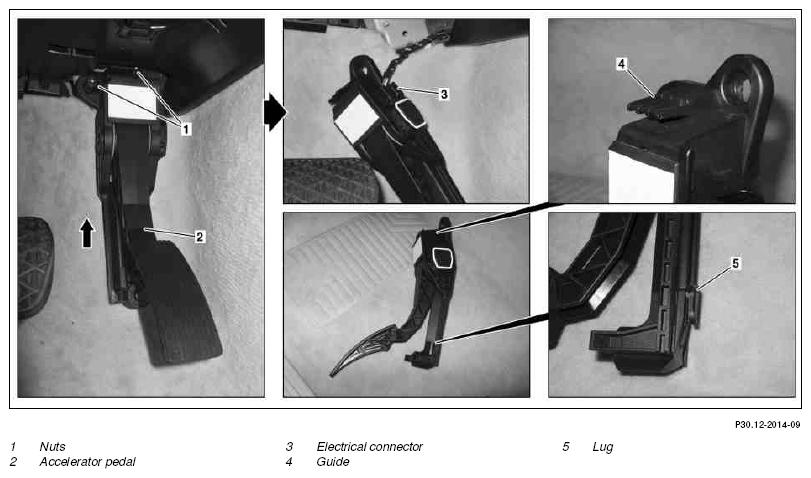

Fig 1: Identifying Accelerator Pedal Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removing/installing
1	Switch off the ignition and remove the transmitter key from the EIS control unit	On vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until the ignition is switched off. Remove the transmitter key from the vehicle and store it in a location beyond its transmission range (at least 2 meters).
2	Unscrew nuts (1)
3	Loosen accelerator pedal (2)	Pull out the accelerator pedal (2) in the upper part slightly and then push upwards (arrow), in order to loosen the lug (5).
4	Remove accelerator pedal (2)	Pay attention to correct seating of the guide (4) in the cover under the instrument panel on the driver-side.
5	Disconnect electrical connector (3)
6	Install in reverse order
