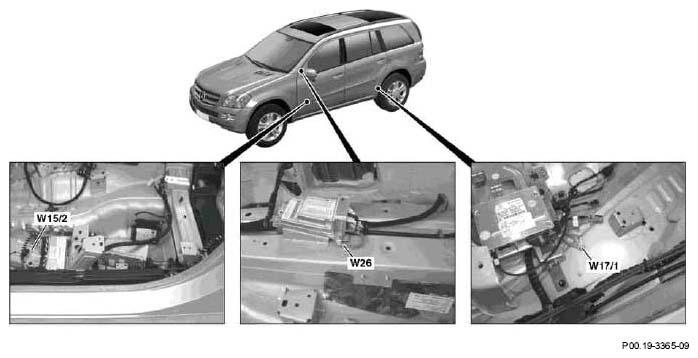

Location and assignment of ground points - interior left - GF00.19-P-2000-04MAA
| Ground point | Designation | Component | Designation | Plug Pin |
|---|---|---|---|---|
| W15/2 | Ground (left footwell) | |||
| RHD/ESV Memory | → N32/1 | Driver front seat adjustment control unit with memory | 1.10 | |
| RL/ESV Memory | → N32/2 | Front passenger front seat adjustment control unit with memory | 1.10 | |
| as of 01/07 | → N40/3 | Amplifier for sound system | 1.2 | |
| LHD | → S22 | Driver seat adjustment switch | 1.2 1.4 |
|
| RHD | → S23 | Front passenger seat adjustment switch | 1.2 1.4 |
|
| RHD | → X30/19 | Passenger-side voltage distributor (CAN C) connector | 13.3 | |
| USA, as of 01/07 | → X58/28 | Electric brake control separation point | 1 | |
| → Z6/12 | Left rear door ground connector sleeve | |||
| → Z6/35 | Left front door ground connector sleeve | |||
| LHD, up to 08/06 | → Z6/47 | Ground connector sleeveW15/2 | ||
| LHD, up to 08/06 | → Z61/17 | Convenience relay circuit 31 connector sleeve | ||
| up to 08/06 | → Z204/5 | Voltage distributor connector, left footwell. Circuit 31 (1) | 1 | |
| as of 09/06 | → Z204/5 | Voltage distributor connector, left footwell. Circuit 31 (1) | G | |
| up to 08/06 | → Z204/7 | Voltage distributor connector, left footwell. circuit 31 (2) | 1 | |
| W17/1 | Ground (left rear seat) | |||
| Reversible emergency tensioning retractor | → A76 | Left front reversible emergency tensioning retractor | 5 | |
| as of 09/06, 164.8 | → N25/7 | HS [SIH], seat ventilation and steering wheel heater control unit | 1.1 | |
| → N32/26 | Folding rear bench seat control unit | 1.10 | ||
| SOUND, up to 12/06 | → N40/3 | Amplifier for sound system | 1.2 | |
| 164.8 | → Z61/12 | Left circuit 31 2nd seat row solder point | ||
| 164.8 | → Z61/13 | Right circuit 31 2nd seat row solder point | ||
| → Z61/4 | Front center console circuit 31 connector sleeve | |||
| → Z204/2 | Circuit 31 right wheelhouse luggage compartment voltage distributor connector | G | ||
| up to 08/06 | → Z204/6 | Voltage distributor connector, left rear seat Circuit 31 | 1 | |
| as of 09/06 | → Z204/6 | Voltage distributor connector, left rear seat Circuit 31 | G | |
| W26 | Ground (restraint systems control unit) | → B48/7 | Driver door pressure sensor | 3 |
| → B48/8 | Front passenger door pressure sensor | 3 | ||
| → S68/1x1 | Left front seat belt buckle and seat belt warning switch connector | 1 | ||
| → S68/2x1 | Right front seat belt buckle and seat belt warning switch connector | 1 | ||
| → N2/7 | Restraint systems control unit | A.15 A.16 |
||
| → Z6/14 | Circuit 31 ground connector sleeve (left belt buckle) | |||
| up to 08/06 | → Z6/15 | Circuit 31 ground connector sleeve (right belt buckle) |
