Remove/install cover below instrument panel (left) - AR68.10-P-1500GZ

MODEL 164

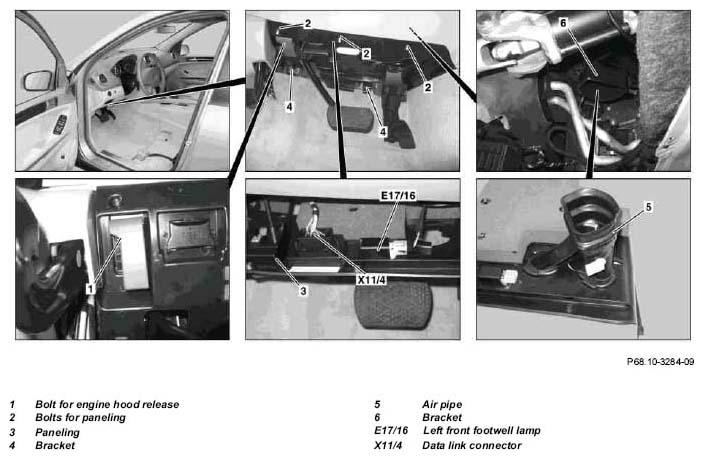

Fig 1: Identifying Cover Below Instrument Panel (Left) Remove/Install Components - Front Seat Removed For Better Illustration

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Front seat removed for better illustration

	Remove
1	Unscrew bolt from engine hood release (1)
2	Unscrew bolts from paneling (2)
3	Lower paneling (3)
4	Disconnect left front footwell lamp electrical connector (E17/16)
5	Unlock and remove data link connector electrical connector (X11/4)
6	Remove air pipe (5) from mount (6)	Lay air pipe (5) down in footwell Do not disconnect electrical connector.
7	Remove paneling (3)
	Install
8	Install air pipe (5) on paneling (3)
9	Connect data link connector electrical connector (X11/4)
10	Connect left front footwell lamp electrical connector (E17/16)
11	Install paneling (3).	Ensure that air pipe (5) and bracket (4) are installed in correct position
12	Screw in bolt for engine hood release (2)
13	Screw in bolts for paneling (2)
