Location and assignment of ground points, engine compartment, right - GF00.19-P-2000-02MAA

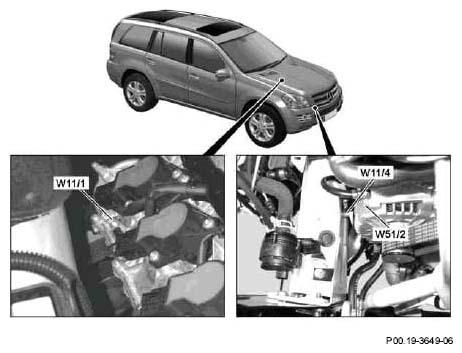

Fig 1: Identifying Engine Compartment And Ground Points Engine Compartment (Right) Location (1 Of 3)

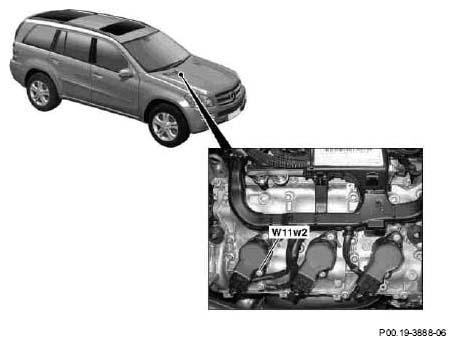

Fig 2: Identifying Engine Compartment And Ground Points Engine Compartment (Right) Location (2 Of 3)

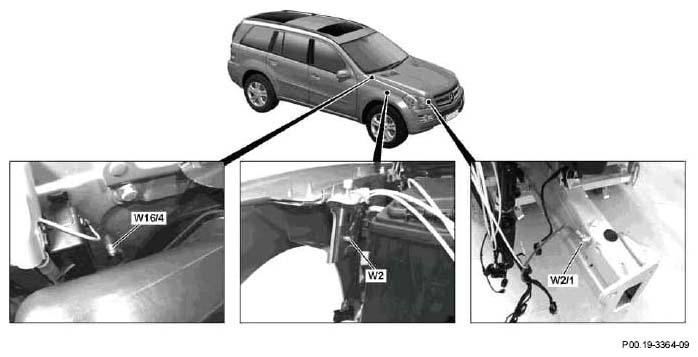

Fig 3: Identifying Engine Compartment And Ground Points Engine Compartment (Right) Location (3 Of 3)
| Ground point | Designation | Component | Designation | Plug Pin |
|---|---|---|---|---|
| W2 | Ground (right front, at lamp unit) | |||
| DTR | → A89 | DTR controller unit | 6 | |
| AIRmatic | → A9/1m1 | Air compressor motor | 1.1 | |
| → E2 | Right front headlamp unit | S1.1 S4.1 S5.1 |
||
| Xenon | → E2 | Right front headlamp unit | S1.1 S3.1 S3.4 |
|
| except xenon | → E2 | Right front headlamp unit | S1.1 S2.1 |
|
| → F58 | Engine compartment fuse and relay box | MR1.2 | ||
| M113 | → F58 | Engine compartment fuse and relay box | MR1.3 | |
| → H2 | Left fanfare horn | 1 | ||
| → H2/1 | Right fanfare horn | 1 | ||
| M642 | → M13/7 | Transmission oil cooler circulation pump | 2 | |
| M156 | → M33 | Electric air pump | 2 | |
| M156 | → M45 | Engine coolant circulation pump | 2 | |
| → S10/2x1 | Right front brake pad contact sensor connector | 2 | ||
| M642, M629 | → Z6 | Ground connector sleeve | ||
| for diesel, M113, M156 | → Z6/99 | Transmission circuit 31 connector sleeve | ||
| W2/1 | Ground (right front - fan) | → M4/7x1 | Connector 1 for engine and air conditioning electric suction fan with integrated control | 1 |
| M156 | ||||
| W11/1 | Ground (engine - ground strap) | → C4/1 | Radio interference suppression capacitor 1 | 2 |
| → T1/5 | Cylinder 5 ignition coil | 3 | ||
| → T1/6 | Cylinder 6 ignition coil | 3 | ||
| → T1/7 | Ignition coil cylinder 7 | 3 | ||
| → T1/8 | Ignition coil cylinder 8 | 3 | ||
| W11/4 | Ground (engine support) | → W51/2 | Ground (engine-frame) | |
| W11w2 | Ground (engine, electrical line screwed on), right cylinder bank | |||
| M272, M273 | → C4/1 | Radio interference suppression capacitor 1 | 2 | |
| M272, M273 | → T1/1 | Cylinder 1 ignition coil | 3 | |
| M272, M273 | → T1/2 | Cylinder 2 ignition coil | 3 | |
| M272, M273 | → T1/3 | Cylinder 3 ignition coil | 3 | |
| M273 | → T1/4 | Cylinder 4 ignition coil | 3 | |
| W16/4 | Ground (right assembly compartment, power ground) | → M13/1 | Rear AC additional circulation pump | 2 |
| M629, M642 | → N3/9 | CDI control unit 2 | 2.2 2.4 2.6 |
|
| M113 | → N3/10 | ME control unit 5 | 5 5.6 5.7 5.8 |
|
| M156 | → N3/10 | ME control unit | 2.2 2.4 2.6 |
|
| → Z6/30 (1) | ME-SFI [ME] diagnosis connector sleeve | |||
| → Z6/30 (2) | ME-SFI [ME] diagnosis connector sleeve | |||
| W51/2 | Ground (engine-frame) | → W11/4 | Ground (engine support) |
