Remove/install side paneling in trunk - AR68.30-P-4800GZ

MODEL 164.1

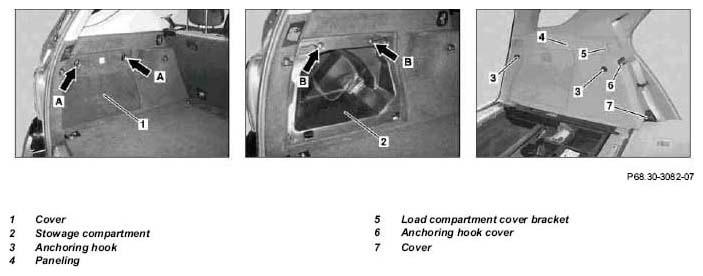

Fig 1: Identifying Side Paneling Remove/Install Components In Trunk - Trunk Floor Removed For Better Illustration

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Trunk floor removed for better illustration

	Remove/Install
1.1	Remove cover (1)	Only vehicles with stowage compartment Unlock both rotary catches (arrows A) to open and remove cover
2.1	Remove storage compartment (2)	Only vehicles with stowage compartment Release both rotary catches (arrows B) to loosen and remove stowage compartment. Installation:  First position stowage compartment at bottom of stay on paneling (4).
3	Release rear seat backrest and fold down
4	Remove lashing eyes (3)	Unscrew one bolt each in center of lashing eye. Installation:  Observe positioning pins on lashing eyes
5	Unscrew bolt from luggage compartment cover bracket (5)
6	Remove anchoring hood cover (6)
7	Pry off cover (7)	Mounting wedge	Figure
8	Carefully unclip paneling (4) and remove	Mounting wedge	Figure
9	Install in the reverse order
