Check setting of windshield washer system spray nozzles - AP82.35-P-8252-01GZ
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing washing fluid or antifreeze or inhaling their vapors. Risk of poisoning caused by swallowing widow washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight fitting safety glasses. No fire, open light or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of childrens' reach only. | AS82.35-Z-0001-01A |
MODIFICATION NOTES
| 31.7.07 | Check adjustment of spray nozzle at the rear window, added | Step 2 | |
| 20.8.07 | Adjustment dimension of spray nozzles for windshield washer system, see picture | *BE82.35-P-1001-01A |
TEST AND ADJUSTMENT VALUES FOR WINDSHIELD WASHER SYSTEM
| Number | Designation | Model 164, 251 | ||
|---|---|---|---|---|
| BE82.35-P-1001-01A | Adjustment dimension of spray nozzles for windshield washer system | XL1 | mm | - |
| YL1 | mm | - | ||
| XL2 | mm | - | ||
| YL2 | mm | - | ||
| XM1 | mm | - | ||
| YM1 | mm | - | ||
| XM2 | mm | - | ||
| YM2 | mm | - | ||
| XR1 | mm | 170 | ||
| YR1 | mm | 90 | ||
| XR2 | mm | - | ||
| YR2 | mm | - | ||
| See picture | AP82.35-P-8252-01GZ | |||

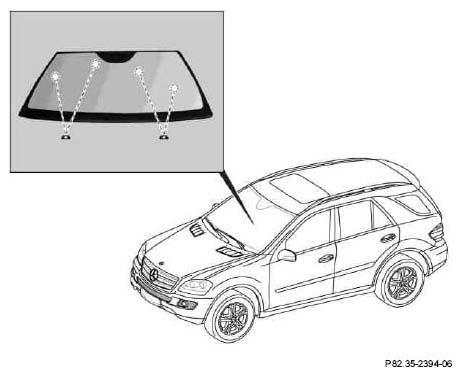

- Check adjustment of spray nozzles at the windshield, correct if necessary
with adjusting drift.
The spray jet must hit the windshield in the marked area.
Shown on model 164.1

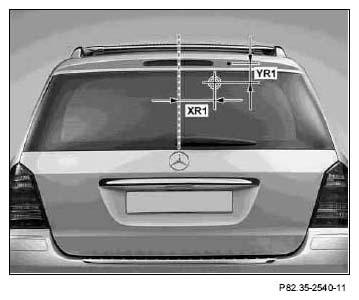

- Check adjustment of spray nozzle at the rear window, if necessary check with
Shown on model 164.8
