Remove/install rear ashtray - AR68.20-P-2230GZ

MODEL 164 with CODE (301) Ashtray package/smoker package

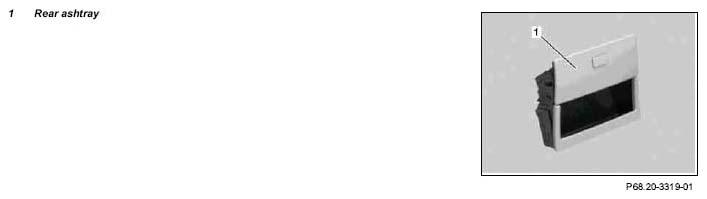

Fig 1: Identifying Rear Ashtray

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

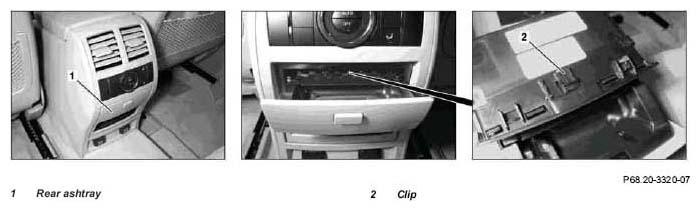

Fig 2: Identifying Rear Ashtray And Clip

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Open rear ashtray (1).n
2	Unclip rear ashtray (1) from clip (2)	Installation:  Rear ashtray (1) should arrest audibly.
		Long wedge	Figure
3	Remove rear ashtray (1).
4	Install in the reverse order

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
