Remove/install front overhead control panel - AR82.20-P-1100GZ

MODEL 164

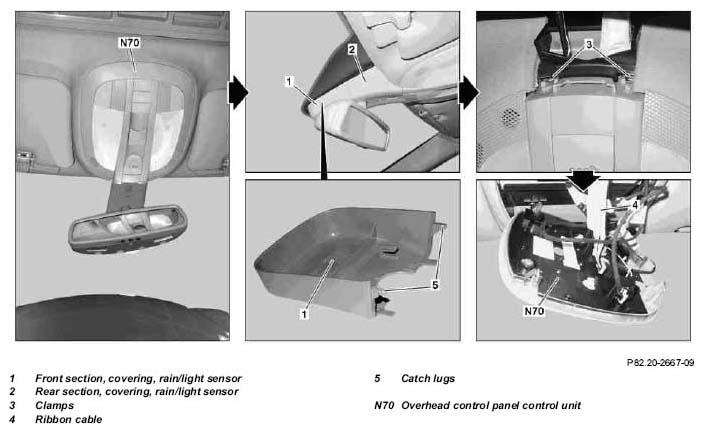

Fig 1: Identifying Front Overhead Control Panel Components Location

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge	All models	AH54.00-P-0001-01A
1	Switch off ignition and remove the transmitter key from the EIS [EZS] control unit	On vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
2	Unclip front section, covering, rain/light sensor (1) toward the front	Carefully unclip tabs (5).
3	Unclip rear section, covering, rain/light sensor (2) downward	Carefully detach rear section of rain/light sensor covering from line.
4	First unclip overhead control panel control unit (N70) at the front clips (3), then at the rear clips (3) and carefully remove downward	Treat ribbon cable (4) carefully to prevent damage.
		Mounting wedge	Figure
5	Disconnect electrical connectors from overhead control panel control unit (N70)
6	Install in the reverse order
7	Carry out function check

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
