AIRmatic - location of the electrical / electronic components - GF32.22-P-0003-03GZ

Model 164.1 /8 with code 489 Airmatic (air suspension with level adjustment and adaptive damping system (ADS))

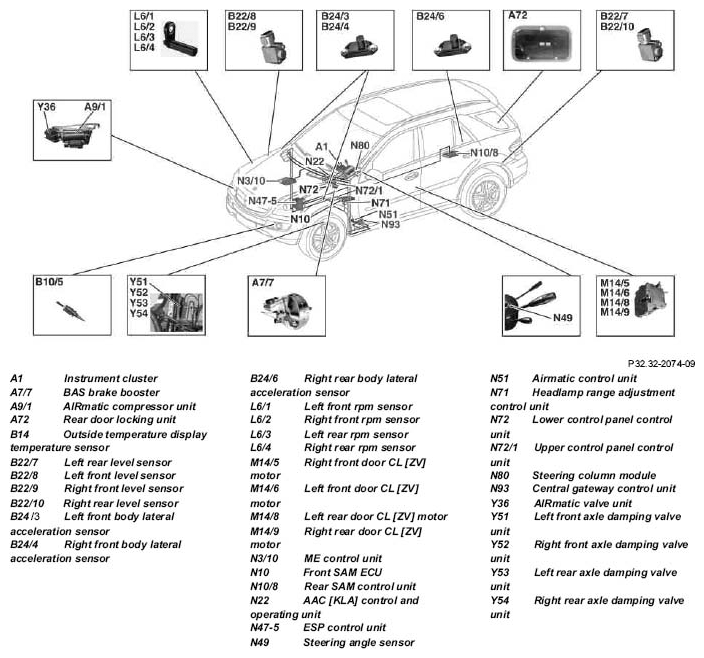

Fig 1: AIRmatic - Location Of Electrical / Electronic Components (Model 164.1 /8)
G05257986Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
