Prepare outer rear center section - AR64.20-P-1000-09GY
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

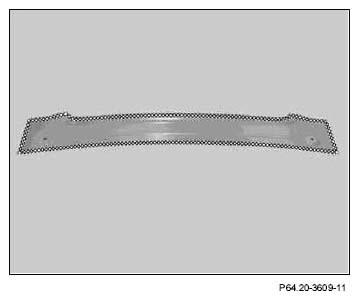

- Grind connection surfaces down to bare metal in shaded areas on both sides.
- Remove shavings using wet/dry vacuum cleaner.
- Using zinc dust paint, coat insides of spot weld flanges.
