Remove rear crossmember - AR64.20-P-1100-01GY

Fig 1: Identifying Spot Weld Milling Cutter (201 589 00 51 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1002-01A	Ball cutter, dia. 12 mm
WH58.30-Z-1006-01A	Vario Drill WS 91 spot weld removing tool
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm
WH58.30-Z-1022-04A	Cutting disk, dia. 50 mm, 80 m/s (max. 30,600 rpm)

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A	Drill (electric/pneumatic)
WE58.40-Z-1002-03A	Straight grinder (electric/pneumatic)
WE58.40-Z-1004-03A	Body saw (electric/pneumatic)

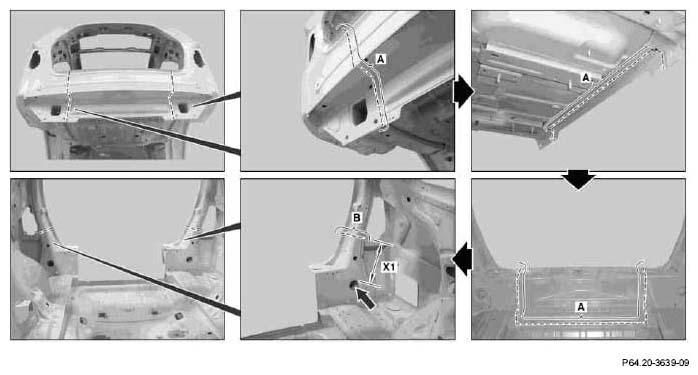

Fig 2: Identifying Rear Crossmember Mark Location (1 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Mark separation points in area A and cut.
Remove separated parts.
Mark separation points in area B on D-ring and cut.
Dimension X1 = 195 mm. Use top edge of hole (arrow) in D-ring as reference point Cut only through one layer.

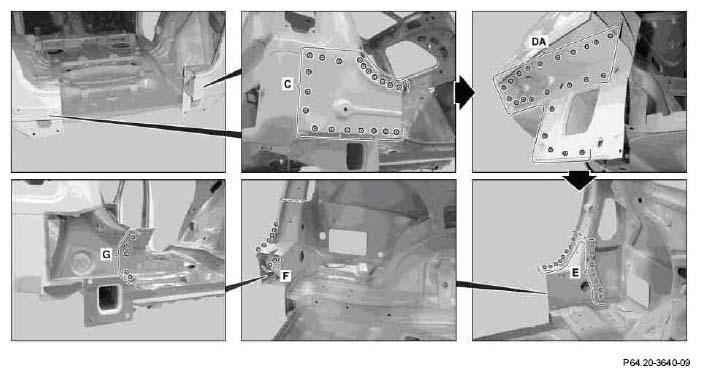

Fig 3: Identifying Rear Crossmember Mark Location (2 Of 3)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Expose spot welds in areas C, DA, E and F and cut out .
Remove separated parts.
Cut out spot welds in area G .

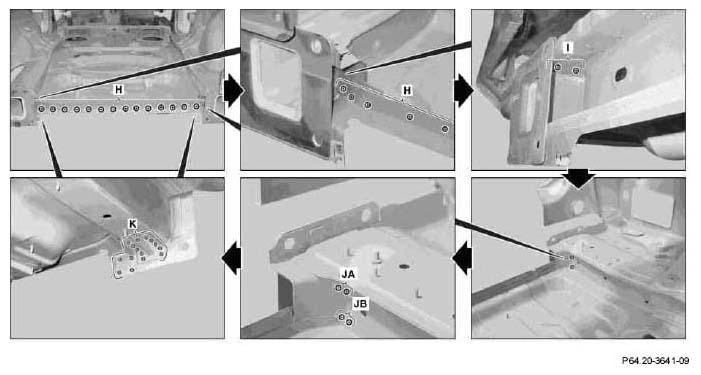

Fig 4: Identifying Rear Crossmember Mark Location (3 Of 3)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Expose spot welds in areas H, I, JA, JB and K and cut out .
Cut spot welds through two layers in area JB.
Remove separated parts.
