Separate deformed rear area - AR64.20-P-1200-11GY

Fig 1: Identifying Spot Weld Milling Cutter (201 589 00 51 00)
G05259443Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1002-01A Ball cutter, dia. 12 mm
WH58.30-Z-1006-01A Vario Drill WS 91 spot weld removing tool
WH58.30-Z-1001-03A Round wire brush, braided, dia. 70 mm
WH58.30-Z-1022-04A Cutting disk, dia. 50 mm, 80 m/s (max. 30,600 rpm)
WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A Drill (electric/pneumatic)
WE58.40-Z-1002-03A Straight grinder (electric/pneumatic)
WE58.40-Z-1004-03A Body saw (electric/pneumatic)

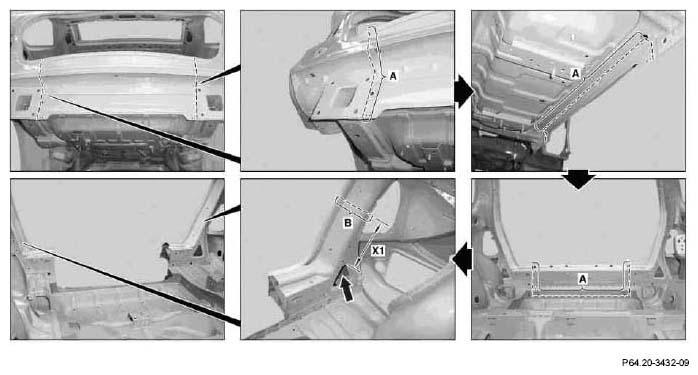

Fig 2: Identifying Mark Separation Points In Area B On D-Ring And Cut
G05259444Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. Mark separation points in area A and cut.
  2. Remove separated parts.
  3. Mark separation points in area B on D-ring and cut.

    IMPORTANT Dimension X1 = 195 mm. Use top edge of hole (arrow) in D-ring as reference point Cut only through one layer.

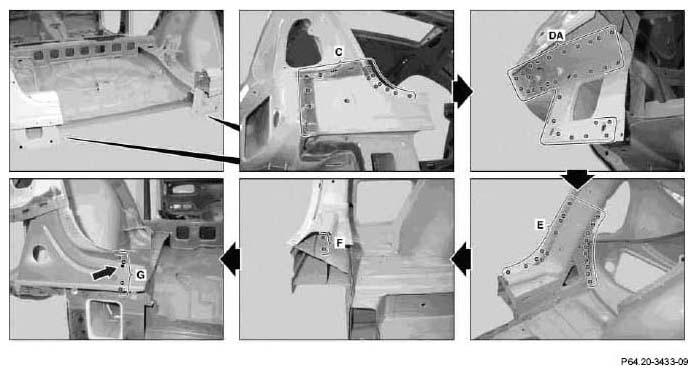

    Fig 3: Identifying Expose Spot Welds And Continuous Welds In Areas C, E, F, And DA
    G05259445Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  4. Expose spot welds and continuous welds in areas C, E, F, and DA.
  5. Cut continuous welds in area C.
  6. Cut out spot welds in areas C, E, F, and DA SPECIAL TOOL .
  7. Remove separated parts.
  8. Cut one spot weld out each (arrow) in area G.

    IMPORTANT Dia. 7 mm drill bit

  9. Cut out four spot welds in area G SPECIAL TOOL .

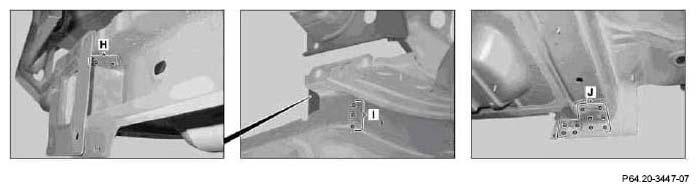

    Fig 4: Identifying Expose Spot Welds On Both Sides Of Vehicle In Areas H, I And J
    G05259446Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  10. Expose spot welds on both sides of vehicle in areas H, I and J and cut out SPECIAL TOOL .

    IMPORTANT Cut out lower spot weld in area I through two layers.

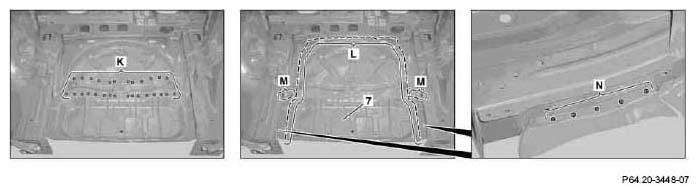

    Fig 5: Identifying Expose Spot Welds In Area K And Cut Out
    G05259447Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  11. Expose spot welds in area K and cut out SPECIAL TOOL .
  12. Mark separation points in areas L and M on spare wheel recess and cut.

    IMPORTANT Cut only through one layer along longitudinal member and crossmember.

  13. Remove separated spare wheel recess.
  14. Expose spot welds in area N on both sides of the vehicle and cut out SPECIAL TOOL .

    IMPORTANT Cut only through one layer along longitudinal member and crossmember
