Remove longitudinal member at rear - AR64.20-P-1200-22GZ

Fig 1: Identifying Spot Weld Milling Cutter (201 589 00 51 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1006-01A	Vario Drill WS 91 spot weld removing tool
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm
WH58.30-Z-1022-04A	Cutting disk, dia. 50 mm, 80 m/s (max. 30,600 rpm)

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A	Drill (electric/pneumatic)
WE58.40-Z-1002-03A	Straight grinder (electric/pneumatic)
WE58.40-Z-1004-03A	Body saw (electric/pneumatic)
WE58.40-Z-1005-03A	Wet/dry vacuum cleaner

Cut D-ring at previously marked point in area A.

Fig 2: Identifying Cut D-Ring At Previously Marked Point In Area A
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Mark separation points in area B and cut.
Remove separated parts.

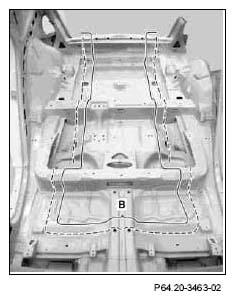

Fig 3: Identifying Mark Separation Points In Area B And Cut
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

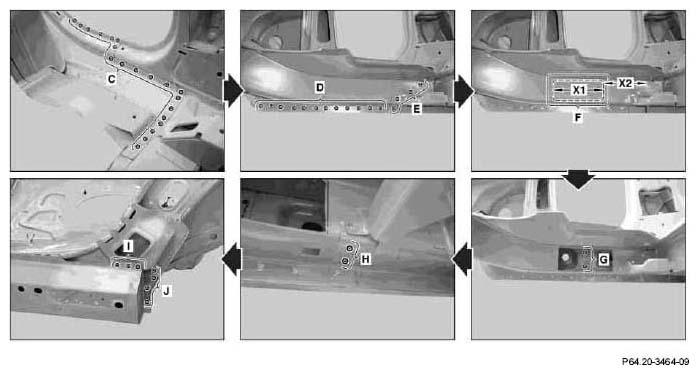

Fig 4: Identifying Expose Spot Welds In Areas C, D And E And Cut Out

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Expose spot welds in areas C, D and E and cut out .
Mark separation points in area F and cut.
Expose spot welds in areas G, H, I and J and cut out .
Remove separated parts.
Dimension X1 approx. 180 mm, dimension X2 approx. 90 mm.

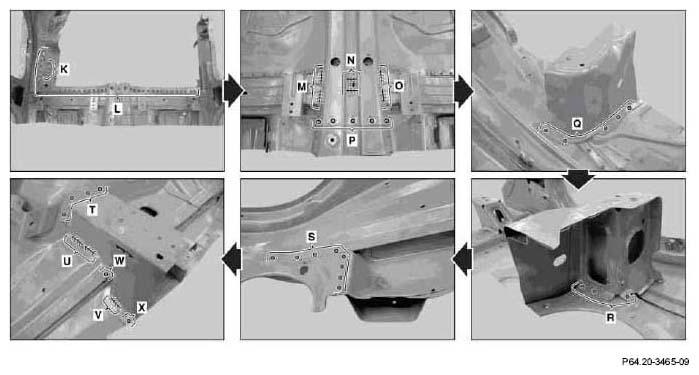

Fig 5: Identifying Expose Spot Welds And Continuous Welds In Areas K To X
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Expose spot welds and continuous welds in areas K to X .
Expose spot welds in areas K, L, P, Q, R, S, T, W and X .
Cut continuous welds in areas M, N, O, U and V.

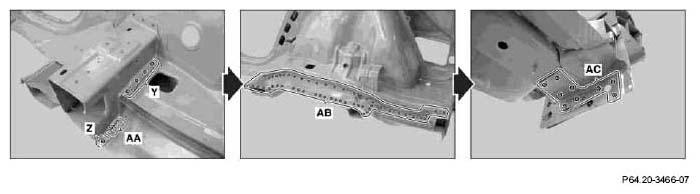

Fig 6: Identifying Expose Spot Welds In Areas Y, Z, AB And AC And Cut Out
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Expose spot welds in areas Y, Z, AB and AC and cut out .
Cut continuous weld in area AA.

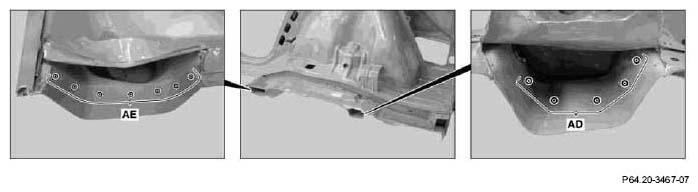

Fig 7: Identifying Expose Spot Welds In Areas AD And AE And Cut Out
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Expose spot welds in areas AD and AE and cut out .
Remove separated parts.
