Separate deformed rear area - AR64.20-P-1200-11GZ
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1002-01A | Ball cutter, dia. 12 mm |
| WH58.30-Z-1006-01A | Vario Drill WS 91 spot weld removing tool |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1022-04A | Cutting disk, dia. 50 mm, 80 m/s (max. 30,600 rpm) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1002-03A | Straight grinder (electric/pneumatic) |
| WE58.40-Z-1004-03A | Body saw (electric/pneumatic) |

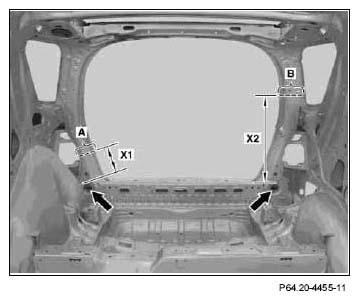

- Mark separation points in areas A and B on D-ring.
Dimension X1 = 195 mm. Dimension X2 = 600 mm. Use top edges of holes (arrows) in D-ring as reference points
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

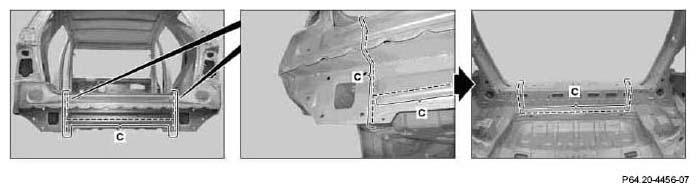

- Mark separation points in area C and cut.
- Remove separated parts.

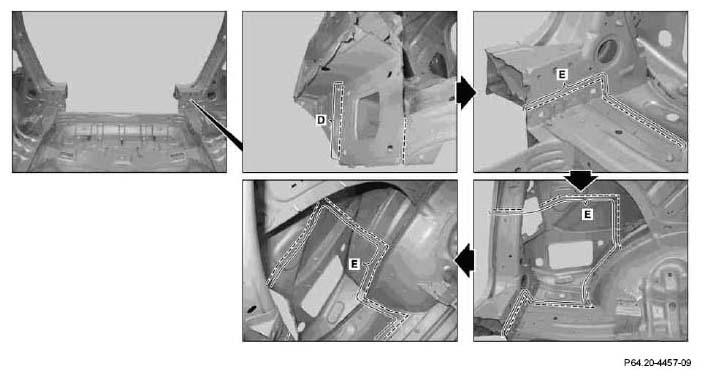

- Mark and cut separation points in areas D and E.
- Remove separated parts.

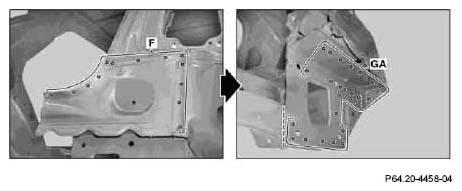

- Expose spot welds in areas F and GA and cut out
.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
- Cut D-ring in area A at previously marked separation point.
Cut only through one layer.

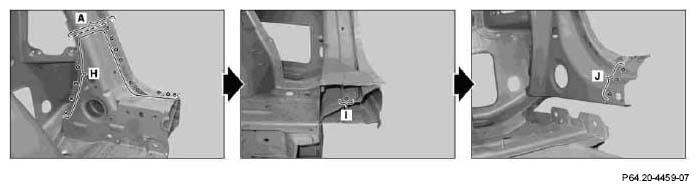

- Expose spot welds in areas H, I and J and cut out
.
- Remove separated parts.

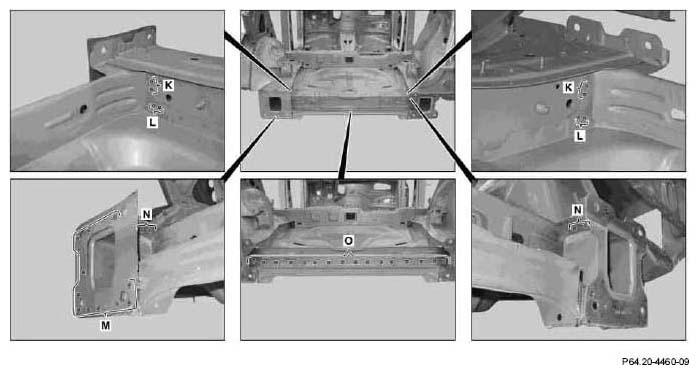

- Expose spot welds in areas K, L, M, N and O and cut out
.
Cut spot welds in area L through two layers.

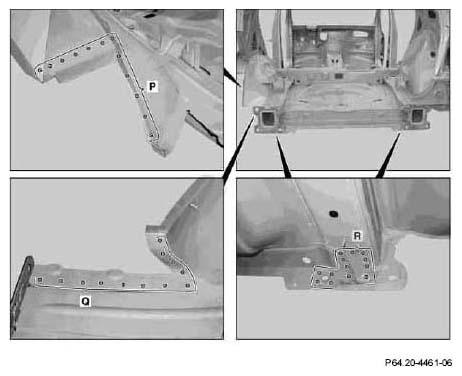

- Expose spot welds in areas P, Q and R and cut out
.
Cut spot welds in area Q through two layers.
- Remove separated parts.
- Cut D-ring in area B at previously marked cutting point
Cut only through one layer.

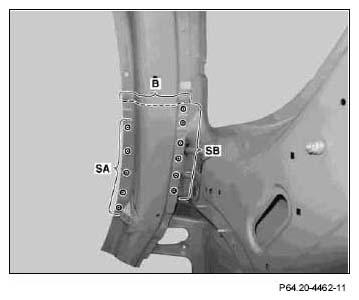

- Expose spot welds in areas SA and SB and cut out
.
Cut out spot welds in area of reinforcement through 2 layers.
- Remove separated parts.
