Remove/install grab handle on roof - AR68.30-P-4330GZA
MODEL 164
stop handle at back of roof
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  |

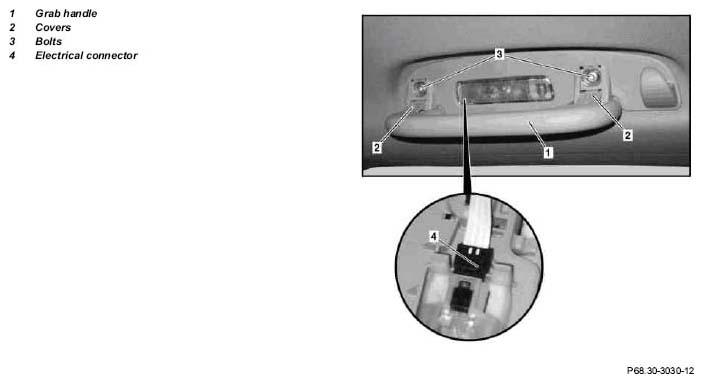

Remove/Install |
| 1 |
Pry off covers (2) |
| 2 |
Remove screws (3) |
| 3 |
Disconnect electrical connector (4) |
| 4 |
Remove grab handle (1) |
| 5 |
Install in the reverse order |
