Removing and installing washer fluid reservoir of windshield washer system - AR82.35-P-6000GZ

MODEL 164.1 with CODE (600) Headlamp cleaning system

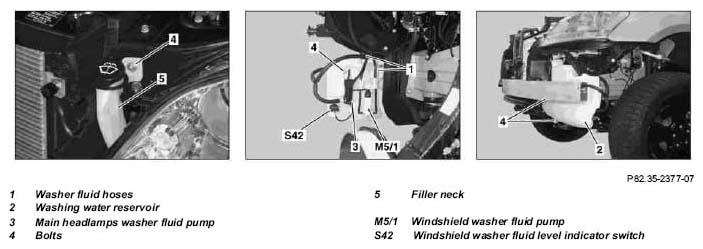

Fig 1: Identifying Windshield Washer Fluid Pump And Windshield Washer Fluid Level Indicator Switch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove front bumper		AR88.20-P-2000GZ
2	Pump washer fluid out of the washer fluid reservoir (2)
3	Unclip washer fluid hoses (1) from the washer fluid reservoir (2)
4	Remove windshield washer fluid level indicator switch (S42)
5	Remove windshield washer fluid pump (M5/1) and main headlamps-washer fluid pump (3) from washer fluid reservoir (2)
6	Remove bolts (4)		*BA82.35-P-1001-01B
7	Remove filler neck (5) upwards
8	Remove washer fluid reservoir (2) downwards
9	Install in the reverse order
10	Fill up washer fluid reservoir (2)
	Windshield washer system - inspect fluid level, adjust to correct level		AP82.35-P-8210GZ
11	Check windshield washer system for proper function	Switch on ignition and check the function of the pumps by operating the combination switch. A sufficient quantity of washer fluid must spray out of the spray nozzles.

WINDSHIELD WASHER SYSTEM

Number	Designation		Model 164.1
BA82.35-P-1001-01B	Bolt, washer fluid reservoir to front end assembly	Nm	10
