Removing and installing headlamp for daytime running light - AR82.10-P-2300GY

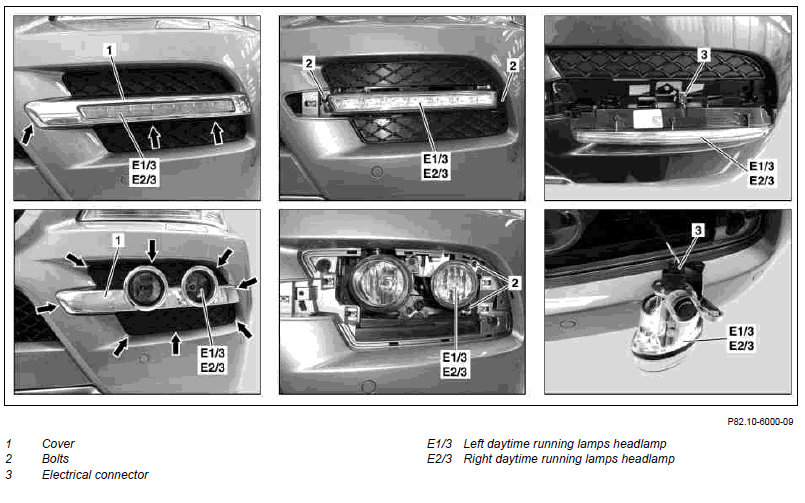

Fig 1: Identifying Daytime Running Lights Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Remove cover (1)

Remove bolt (2)

Remove daytime running lights headlamps (E1/3, E2/3) and detach electrical connector (3)

Install in the reverse order
