Remove/install windshield washer nozzle - AR82.35-P-6970GZ

MODEL 164

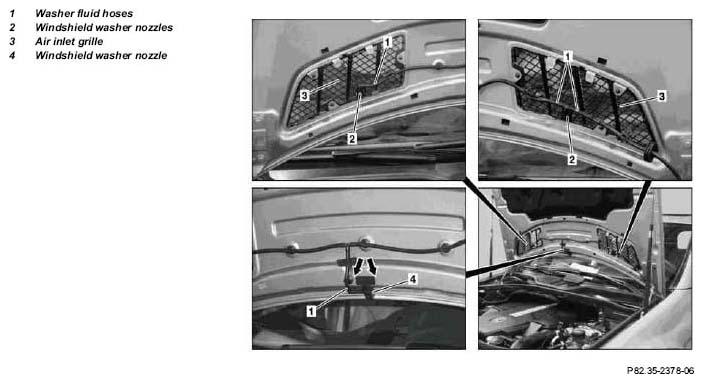

Fig 1: Identifying Windshield Washer Nozzle Components Location

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove air inlet duct under the hood		AR83.25-P-1407GZ
2	Unclip windshield washer nozzles (2) from air inlet grille (3)
3	Remove windshield washer nozzles (2)
4	Unclip windshield washer nozzle (4) (arrows)	Avoid damaging paint.
5	Detach washer fluid hoses (1) from windshield washer nozzles (2) and windshield washer nozzle (4)
6	Install in the reverse order
7	Fill up washer fluid reservoir
	Windshield washer system - inspect fluid level, adjust to correct level		AP82.35-P-8210GZ
