Remove/install windshield washer hose - AR82.35-P-6980GZ

MODEL 164

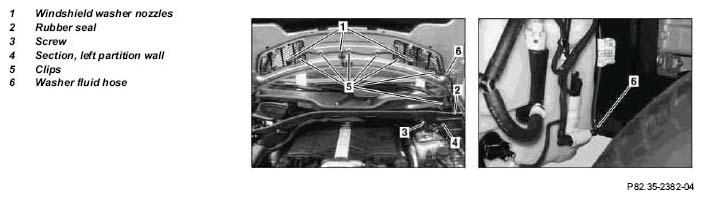

Fig 1: Identifying Windshield Washer Hose Components Location

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Open engine hood and raise to vertical position		AR88.40-P-1000GZ
2	Remove air inlet duct under hood		AR83.25-P-1407GZ
3	Detach washer fluid hose (6) from the windshield washer nozzles (1)
4	Detach rubber seal (2) in the area of the left partition wall section (4)
5	Remove bolt (3)
6	Unclip left partition wall section (4) and remove
7	Unclip washer fluid hose (6) out of clips (5)
8	Remove front part section of fender liner in front fender	Remove front part section of fender liner in left front fender.	AR88.10-P-1310GZ
9	Detach washer fluid hose (6) and seal	Collect any escaping window washer fluid in a suitable container.
		Set of plugs	Figure
10	Expose washer fluid hose (6) and remove
11	Install in the reverse order
12	Perform function check
13	Check windshield washer system fluid level and correct if necessary
	Inspect fluid level of windshield washer system, adjust to correct level		AP82.35-P-8210GZ
