Remove/install tailgate wiper arm - AR82.30-P-6910GZ

MODEL 164

Illustrated on model 164.1

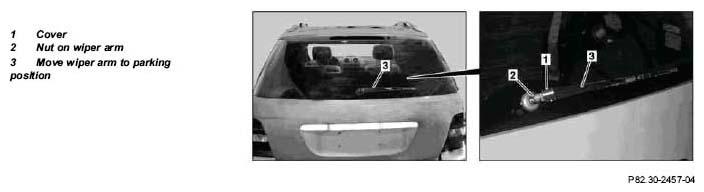

Fig 1: Identifying Tailgate Wiper Arm Components Location

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of injury in the form of trapping or crushing, or even severing of limbs, if caught in windshield wiper mechanism	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
1	Open the cover (1)
2	Unscrew nut on wiper arm (2)		*BA82.30-P-1004-01J
3	Remove wiper arm in parking position (3)	Fold wiper arm back and remove, use puller if necessary.
		Puller	Fig 2
4	Install in the reverse order	Mount wiper arm such that the wiper arm faces to the right

WINDSHIELD WIPER

Number	Designation		Models 164.1/8
BA82.30-P-1004-01J	Nut for rear window wiper arm to wiper motor	Nm	12

Fig 2: Identifying Puller (001 589 38 33 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
