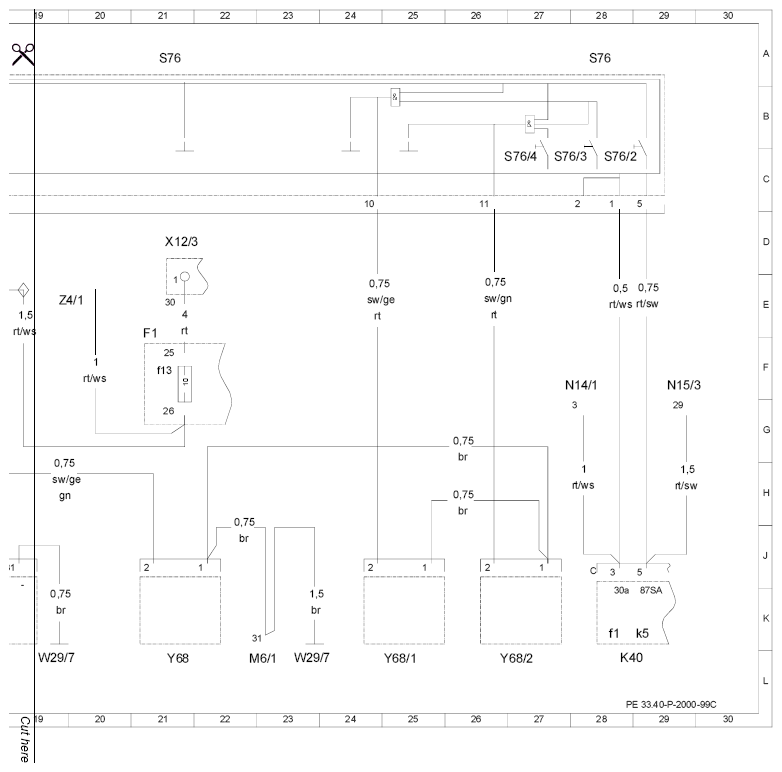

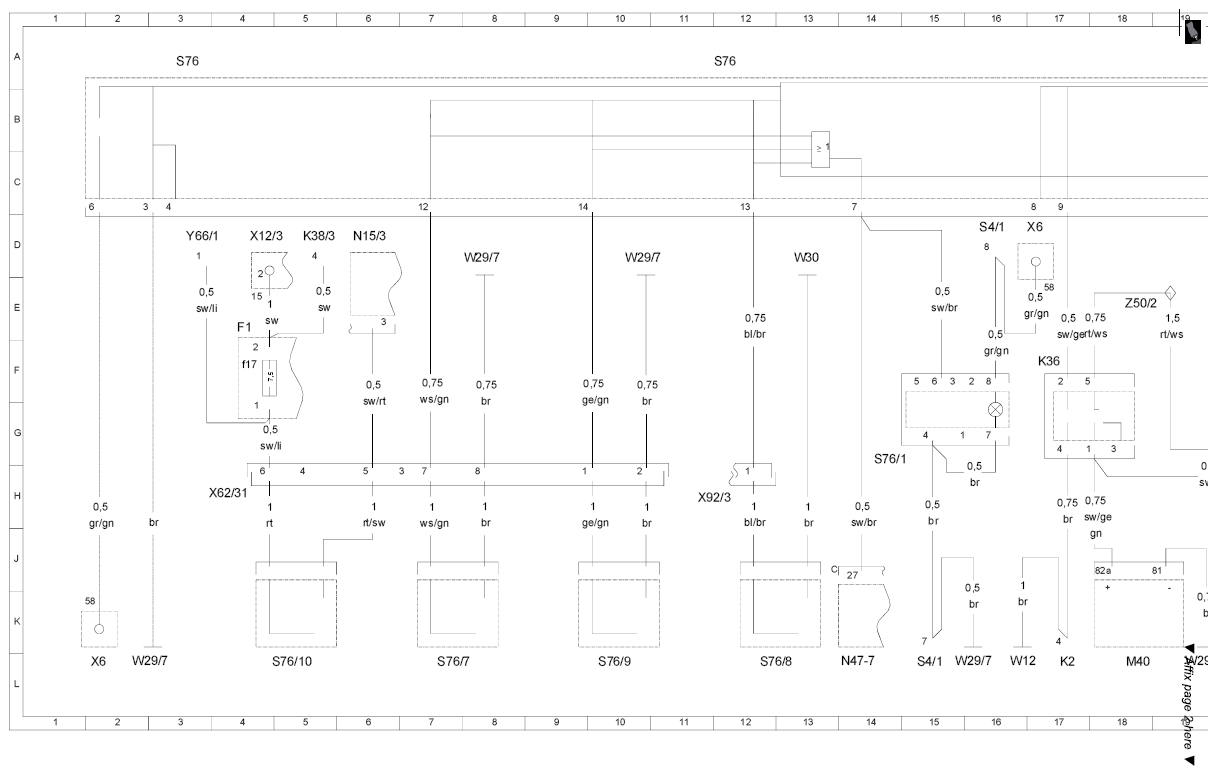

| F1 |
Fuse box |
4 E |
| F1 |
Fuse box |
21 F |
| F1f13 |
Fuse 13 |
21 F |
| F1f17 |
Fuse 17 |
4 F |
| K2 |
Headlamp cleaning system (HCS [SRA]) relay |
17 L |
| K36 |
Longitudinal equalization differential lock relay module |
17 F |
| K38/3 |
Starter lockout relay |
5 D |
| K40 |
Relay module |
28 L |
| K40f1 |
Traction system/differential locks fuse |
28 K |
| K40k5 |
Differential locks relay |
29 K |
| M40 |
Differential locks vacuum pump |
18 L |
| M6/1 |
Wiper motor |
22 L |
| N14/1 |
Run-on cooling relay |
27 F |
| N15/3 |
ETC [EGS] control unit |
6 D |
| N15/3 |
ETC [EGS] control unit |
29 F |
| N47-7 |
ABS control unit |
14 L |
| S4/1 |
HCS [SRA] switch |
15 L |
| S4/1 |
HCS [SRA] switch |
16 D |
| S76 |
Differential lock switch group |
3 A |
| S76 |
Differential lock switch group |
11 A |
| S76 |
Differential lock switch group |
21 A |
| S76 |
Differential lock switch group |
28 A |
| S76/1 |
ABS switch (on/off) |
14 H |
| S76/10 |
Road/neutral/off-road switch |
4 L |
| S76/2 |
Differential lock switch (longitudinal equalization) |
28 C |
| S76/3 |
Rear axle differential lock switch |
27 C |
| S76/4 |
Front axle differential lock switch |
26 C |
| S76/7 |
Differential lock indicator switch (longitudinal equalization) |
7 L |
| S76/8 |
Rear axle differential lock indicator switch |
12 L |
| S76/9 |
Front axle differential lock indicator switch |
10 L |
| W12 |
Ground (center console) |
16 L |
| W29/7 |
Ground (steering column) |
2 L |
| W29/7 |
Ground (steering column) |
8 D |
| W29/7 |
Ground (steering column) |
10 D |
| W29/7 |
Ground (steering column) |
15 L |
| W29/7 |
Ground (steering column) |
19 L |
| W29/7 |
Ground (steering column) |
23 L |
| W30 |
Ground (frame) |
13 D |
| X12/3 |
Circuit 30, 15, 61 terminal block (3-pin) |
4 D |
| X12/3 |
Circuit 30, 15, 61 terminal block (3-pin) |
21 D |
| X6 |
Circuit 58 terminal block (2-pin) |
2 L |
| X6 |
Circuit 58 terminal block (2-pin) |
16 D |
| X62/31 |
Differential locks connector |
3 H |
| X92/3 |
Frame connector (22-pin) |
11 H |
| Y66/1 |
Reverse/parking lock valve |
3 D |
| Y68 |
Differential lock solenoid valve (longitudinal equalization) |
21 L |
| Y68/1 |
Differential lock solenoid valve (rear axle) |
25 L |
| Y68/2 |
Differential lock solenoid valve (front axle) |
26 L |
| Z4/1 |
Circuit 30 (fused) connector sleeve, convenience and rear dome lamp |
19 E |
| Z50/2 |
Connector sleeve 2 |
18 E |
